Select Lever: Disassembly

  1. Remove the grip button.
    NOTE: The select lever cannot be disassembled.

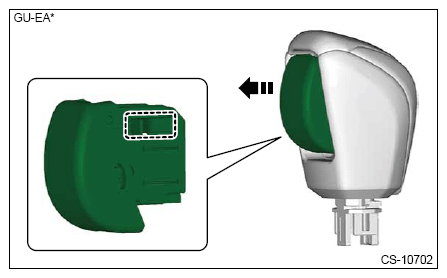

    1. Disengage the claws on the both sides.
    2. Remove the grip button.
      G16767438Courtesy of SUBARU OF AMERICA, INC.
