Auto Start Stop System (Diagnostics): Electrical Component Location: Location

Courtesy of SUBARU OF AMERICA, INC.

(1)	TCM
(2)	ECM
(3)	Front hood lock ASSY (with integrated hood switch)

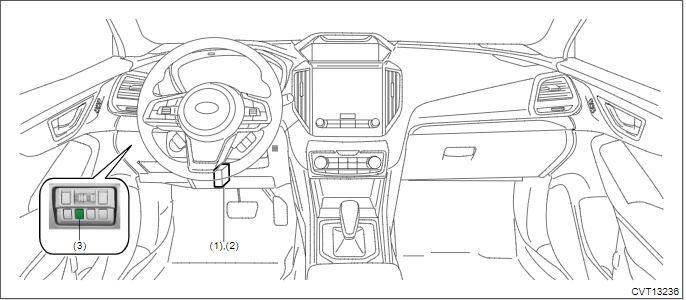

Courtesy of SUBARU OF AMERICA, INC.

(1)	DC/DC converter 1
(2)	DC/DC converter 2 (with audio amplifier)
(3)	Auto Start Stop cancel switch

Courtesy of SUBARU OF AMERICA, INC.

(1)	Electric oil pump
(2)	Inhibitor switch

Courtesy of SUBARU OF AMERICA, INC.

(1)	Electric oil pump relay
(2)	Starter relay
(3)	Starter cut relay
