Outlet Engine Coolant Temperature Sensor

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Drain engine coolant. Ref. to COOLING (H4DO)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  3. Remove the generator. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>GENERATOR>REMOVAL .

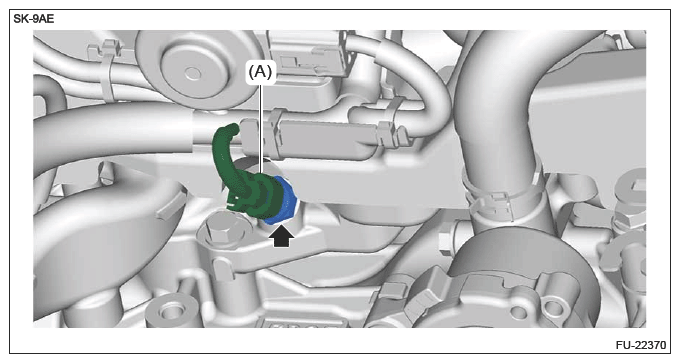

  4. Disconnect the connector (A) and remove the outlet engine coolant temperature sensor.
G16340610Courtesy of SUBARU OF AMERICA, INC.
