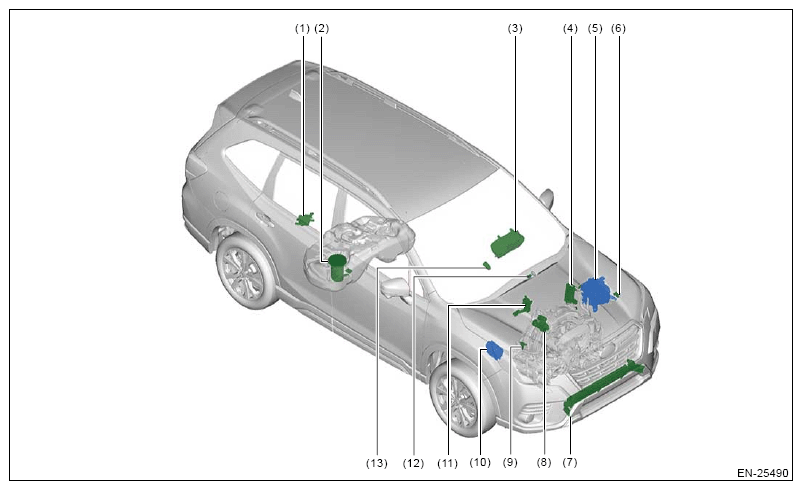

Engine Control System (Diagnostics) - Introduction: Electrical Component Location: Location: Body
| (1) | Leak check valve ASSY |
| (2) | Fuel pump |
| (3) | Combination meter |
| (4) | Engine control module (ECM) |
| (5) | M/B |
| (6) | Battery sensor |
| (7) | Active grille shutter |
| (8) | Starter |
| (9) | Air flow sensor |
| (10) | Relay holder |
| (11) | Accelerator pedal position sensor |
| (12) | Data link connector |
| (13) | Push button ignition switch (model with push button start) |
