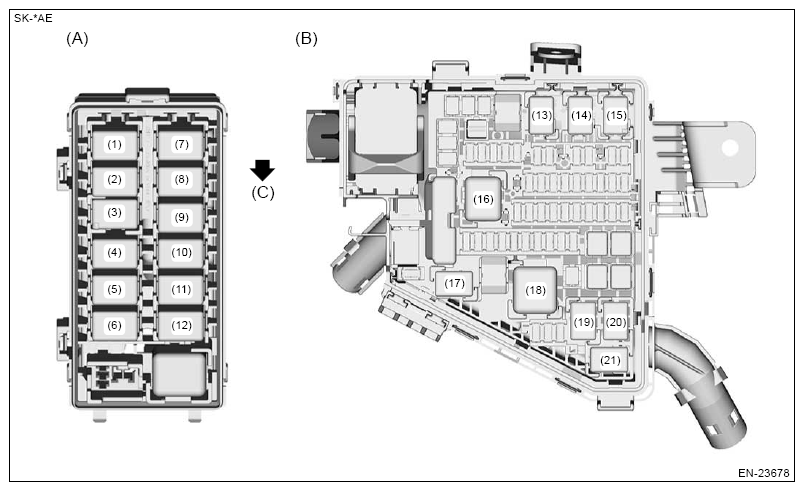

Fuse And Relay
| (A) | Relay holder |
| (B) | M/B |
| (C) | Forward |
| (1) | - |
| (2) | Sub fan relay |
| (3) | - |
| (4) | - |
| (5) | - |
| (6) | - |
| (7) | - |
| (8) | - |
| (9) | - |
| (10) | - |
| (11) | - |
| (12) | - |
| (13) | - |
| (14) | - |
| (15) | Fuel pump relay |
| (16) | Main relay |
| (17) | Main fan relay 2 |
| (18) | - |
| (19) | Starter relay |
| (20) | Starter cut relay |
| (21) | Main fan relay 1 |
NOTE:
Only shows parts required for engine diagnosis.
