Control Valve Body: Installation

Check the control valve body for foreign matter adhesion.

Install the control valve body.

Set the control valve body to the transmission body.

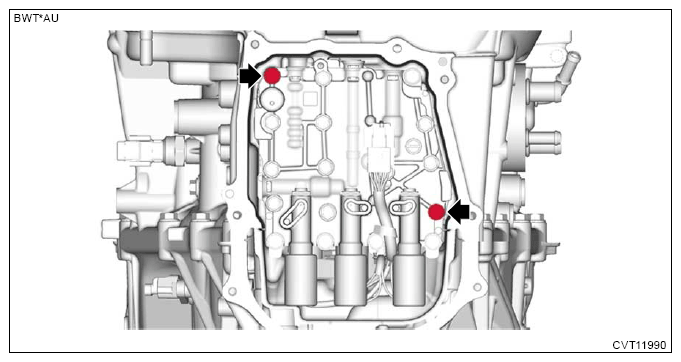

Temporarily tighten the bolt (silver).

Courtesy of SUBARU OF AMERICA, INC.

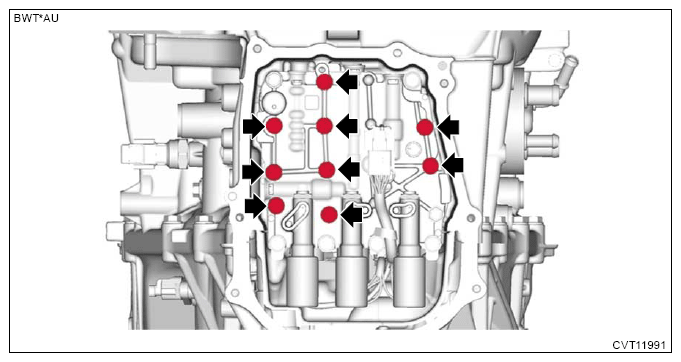

Attach the bolt (black).

Tightening torque:

9 N.m (0.9 kgf-m, 6.6 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Tighten the bolt (silver).
Tightening torque:

9 N.m (0.9 kgf-m, 6.6 ft-lb)

Install a new O-ring to the transmission harness.
NOTE: Apply CVTF to the O-rings.
Temporarily attach the transmission harness to the valve cover.
Install a new gasket to the valve cover.

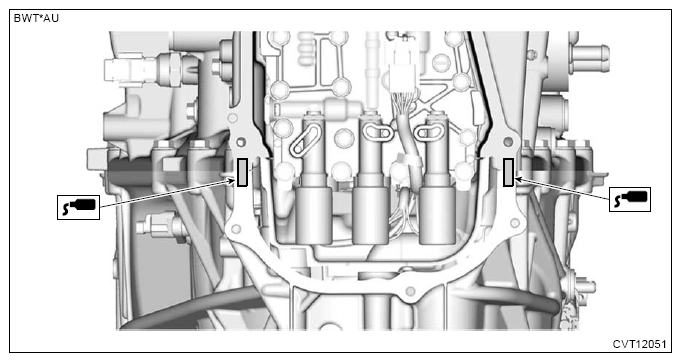

Apply liquid gasket to the area shown in the figure.
NOTE:
- Before applying liquid gasket, degrease the old liquid gasket seal surface of the transmission body and valve cover gasket.
- Install within 5 min. after applying liquid gasket.
Liquid gasket:

THREE BOND 1216J or equivalent

Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the control valve body.
Install the connector cover to the connector.
Temporarily attach the valve cover.

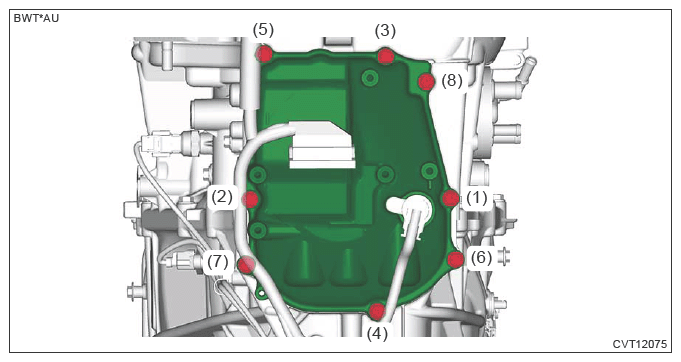

Tighten the bolts in the numerical order as shown in the figure.
CAUTION: Be careful not to catch the ST (SHEET SPECIAL TOOL).

Tightening torque:

8 N.m (0.8 kgf-m, 5.9 ft-lb)

Fig 1: Valve Cover Bolts Tightening Sequence
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolt which holds the transmission harness.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)
Remove the ST (SHEET SPECIAL TOOL).
Install the clip which holds the transmission harness.
Install the air breather hose stay to the valve cover.
Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

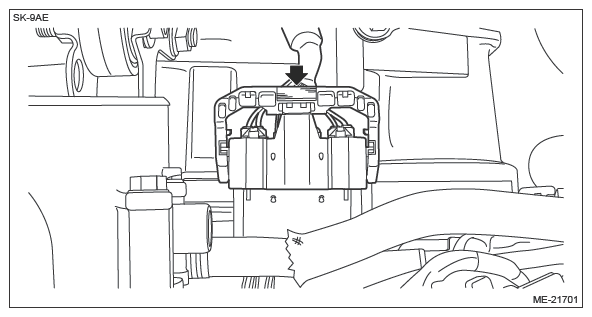

Connect the transmission harness connector to the engine wiring harness.

Courtesy of SUBARU OF AMERICA, INC.
Install the pitching stopper bracket. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TRANSMISSION MOUNTING SYSTEM>INSTALLATION > PITCHING STOPPER
Install the TCM. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TRANSMISSION CONTROL MODULE (TCM)>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Check the CVTF level. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>CVTF>INSPECTION .
Perform the [Clear AT learning value] and [AT learning mode] using Subaru Select Monitor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>AT LEARNING>PROCEDURE .
