Control Valve Body: Removal

NOTE: The control valve body is a non-disassembly part.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the TCM. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TRANSMISSION CONTROL MODULE (TCM)>REMOVAL .
Remove the pitching stopper bracket. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TRANSMISSION MOUNTING SYSTEM>REMOVAL > PITCHING STOPPER

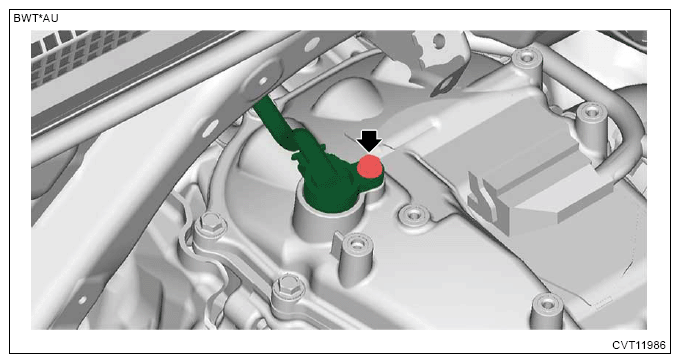

Disconnect the transmission harness connector from the engine wiring harness.

Courtesy of SUBARU OF AMERICA, INC.

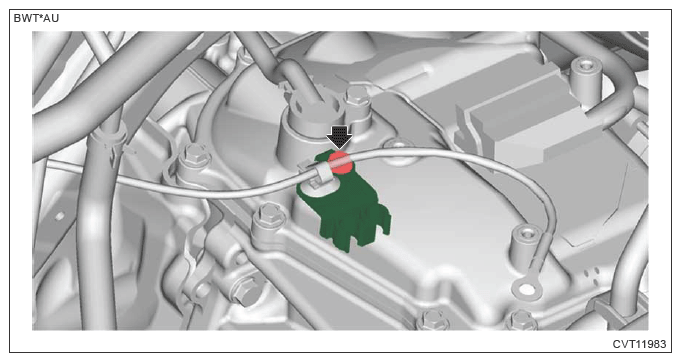

Remove the air breather hose stay.

Courtesy of SUBARU OF AMERICA, INC.

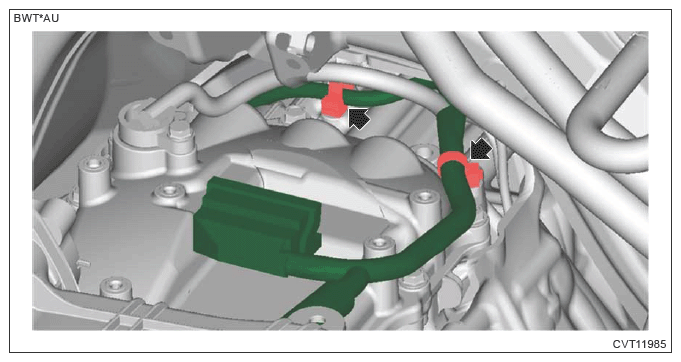

Remove the clips securing the transmission harness.

Courtesy of SUBARU OF AMERICA, INC.
Clean the valve cover vicinity.
CAUTION: Make sure that foreign matter does not get into the throttle body and connector terminals.

NOTE: This is necessary to prevent foreign matter from getting into the transmission.

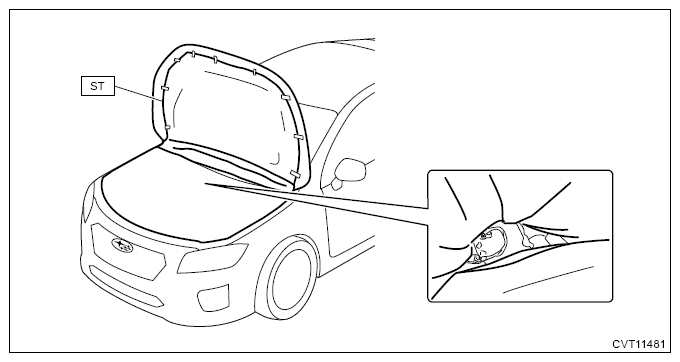

Attach the ST.
NOTE: The ST is included in the control valve body for repairs.

Preparation tool:

ST: SHEET SPECIAL TOOL (18761AA010)

Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt securing the transmission harness.

Courtesy of SUBARU OF AMERICA, INC.

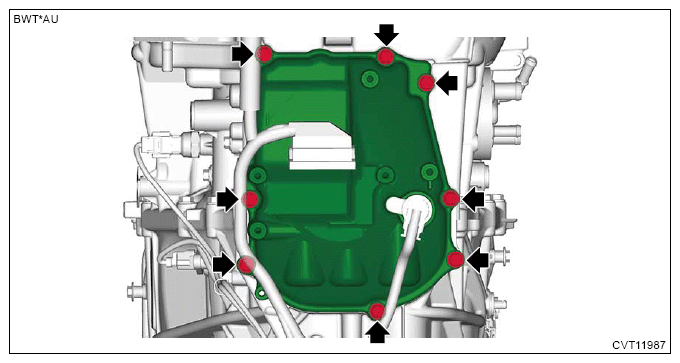

Remove the valve cover.

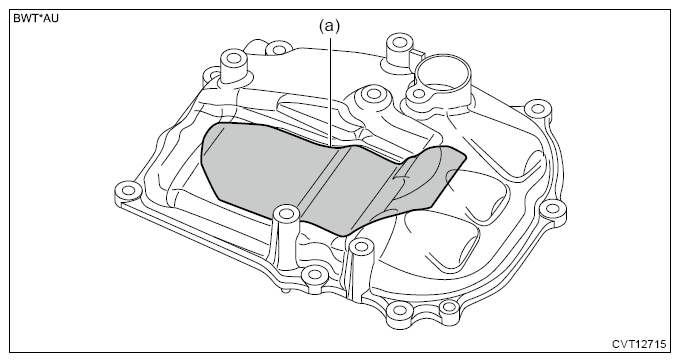

NOTE: Some scratches on the damping sheet (a) do not affect transmission performance, only if there is no damage on the valve cover.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

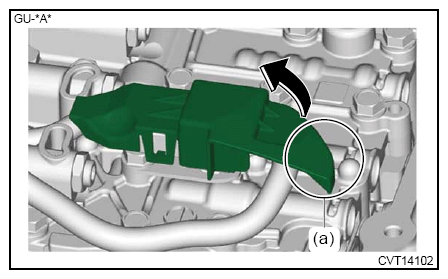

Remove the connector cover.

NOTE: Raise the part (a) and remove it.

Courtesy of SUBARU OF AMERICA, INC.

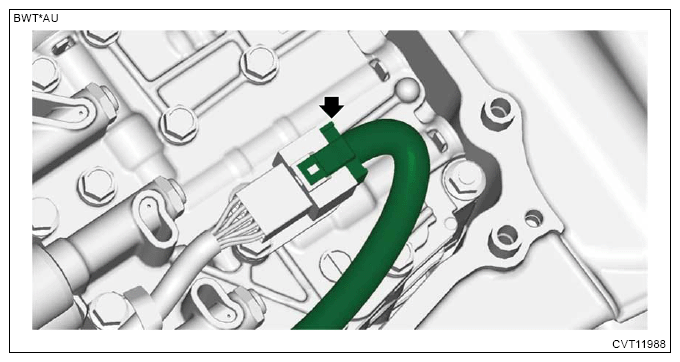

Disconnect the connector from the control valve body, and remove the transmission harness from the valve cover.

Courtesy of SUBARU OF AMERICA, INC.
Remove the O-rings.

Courtesy of SUBARU OF AMERICA, INC.

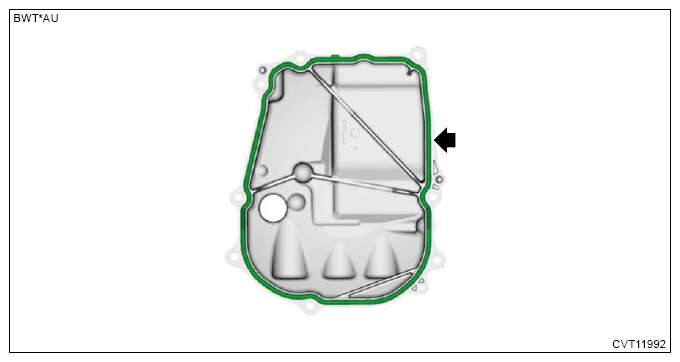

Remove the gasket.

Courtesy of SUBARU OF AMERICA, INC.

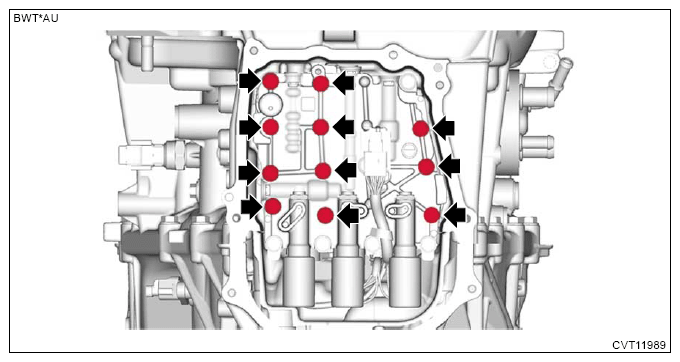

Remove the control valve body.
CAUTION: Do not remove any bolts other than specified in the figure.

Courtesy of SUBARU OF AMERICA, INC.
Remove the liquid gasket from the mating surface of valve cover and transmission body.
