Converter Case: Assembly
- Install the stud bolt.NOTE: After installing, check that the protruding portion (a) is within the standard.
Tightening torque:
18 N.m (1.8 kgf-m, 13.3 ft-lb)
Specification:
25.0 - 28.7 mm (0.98 - 1.13 in)
- Install the plugs and oil guides with new O-rings.NOTE:
- Apply CVTF to the O-rings.
- Replace the gasket of filler plug (differential gear oil) with a new part after adjusting the differential gear oil.
Tightening torque:
T1: 13 N.m (1.3 kgf-m, 9.6 ft-lb)
T2: 22 N.m (2.2 kgf-m, 16.2 ft-lb)
T3: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

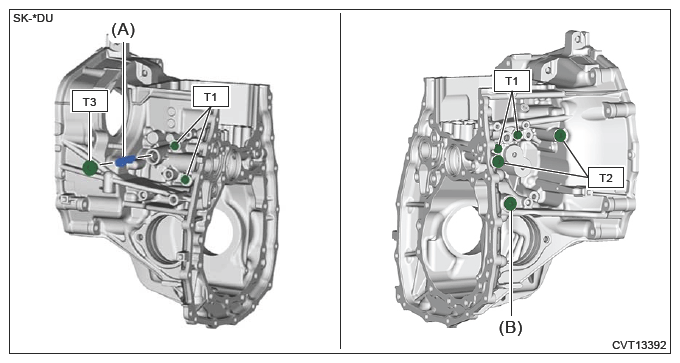

(A) Oil guide (B) Filler plug (differential gear oil) - Install the primary pressure sensor using a new O-ring. (WILDERNESS model) Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>PRIMARY PRESSURE SENSOR>INSTALLATION .
- Install the line pressure sensor using a new O-ring. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>LINE PRESSURE SENSOR>INSTALLATION .

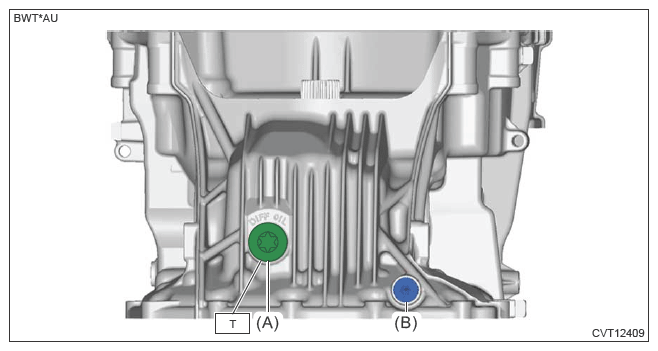

- Attach the drain plug (A) using a new gasket, using TORX® bit T70.
Tightening torque:
70 N.m (7.1 kgf-m, 51.6 ft-lb)
- Temporarily install the overflow plug (B).NOTE: Replace the gasket of overflow plug with a new part after adjusting the differential gear oil level.
