Converter Case: Disassembly

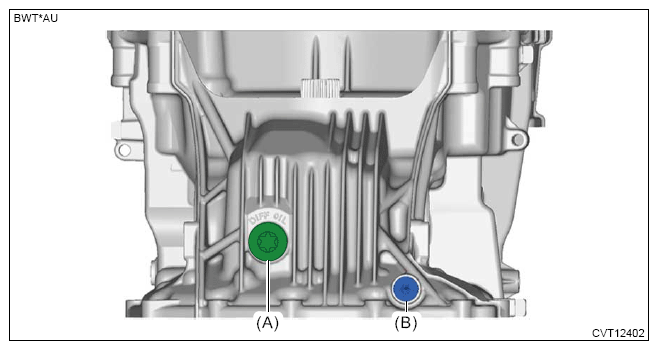

  1. Remove the drain plug (A) using TORX® bit T70.
  2. Remove the overflow plug (B).
    G13936376Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the line pressure sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>LINE PRESSURE SENSOR>REMOVAL .
  4. Remove the primary pressure sensor. (WILDERNESS model) Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>PRIMARY PRESSURE SENSOR>REMOVAL .

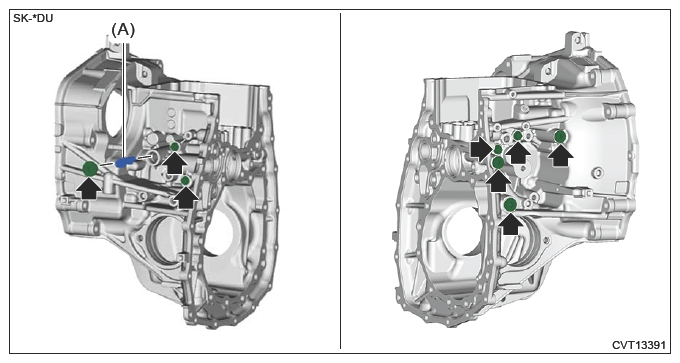

  5. Remove the plugs and oil guide.
    G16338591Courtesy of SUBARU OF AMERICA, INC.
    (A) Oil guide
  6. Remove the stud bolt.
G13592394Courtesy of SUBARU OF AMERICA, INC.
