Drive Pinion: Installation

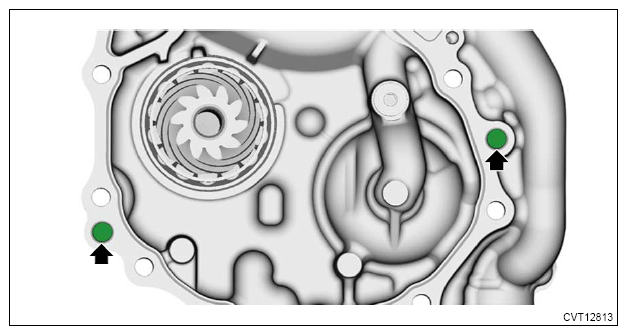

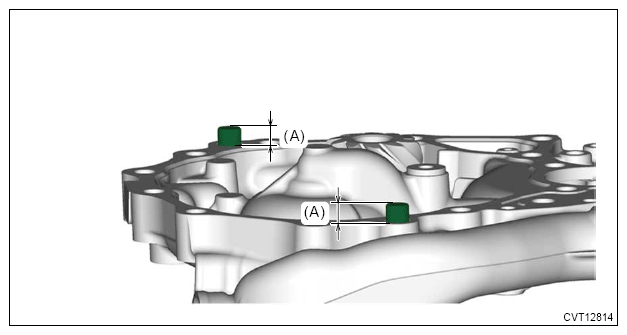

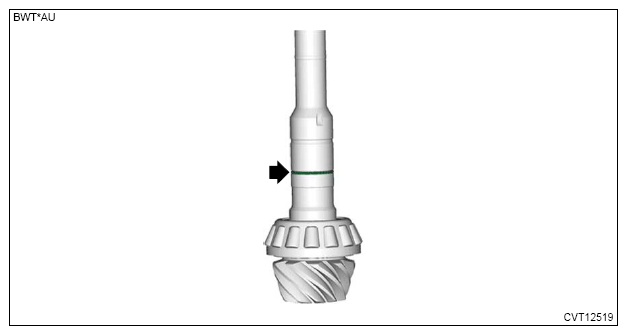

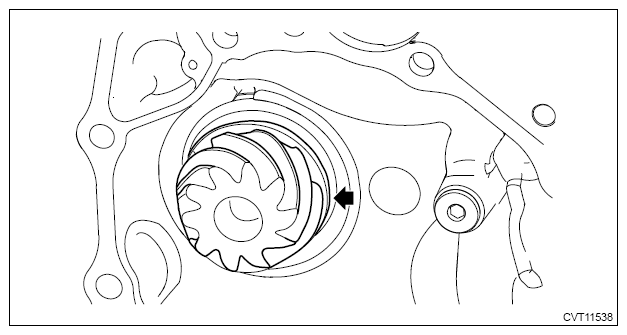

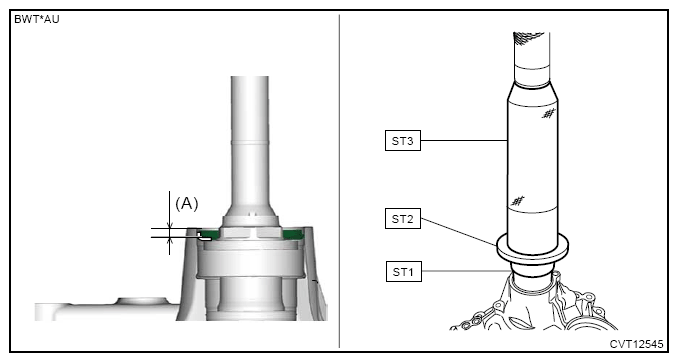

Check the projection (A) of the knock pins.
NOTE: When attached on the converter case side, install them on the drive pinion retainer side.

Courtesy of SUBARU OF AMERICA, INC.

Specification:

8.0 - 9.0 mm (0.31 - 0.35 in)

Courtesy of SUBARU OF AMERICA, INC.

Select the drive pinion washer.

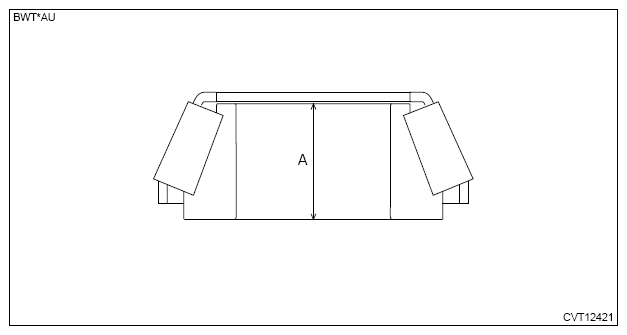

Measure the dimension "A" of a new taper roller bearing (front) inner race.

Courtesy of SUBARU OF AMERICA, INC.

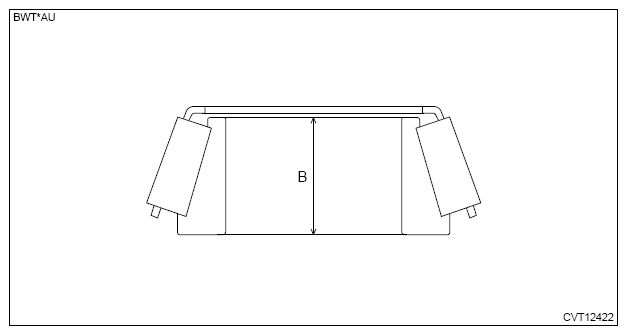

Measure the dimension "B" of a new taper roller bearing (rear) inner race.

Courtesy of SUBARU OF AMERICA, INC.

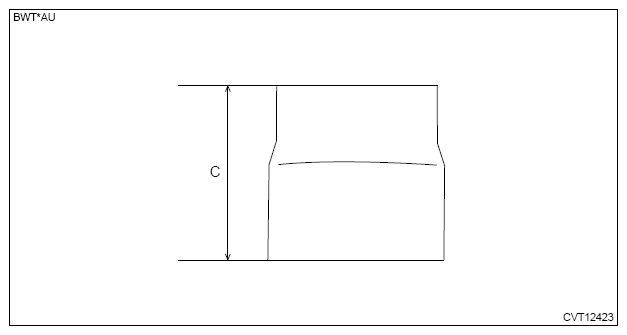

Measure the dimension "C" of the drive pinion spacer.

Courtesy of SUBARU OF AMERICA, INC.

Place the drive pinion retainer on the surface plate, and set the taper roller bearing (rear) inner race to the taper roller bearing (rear) outer race.
NOTE: Be careful not to tilt the taper roller bearing (rear) inner race when setting.

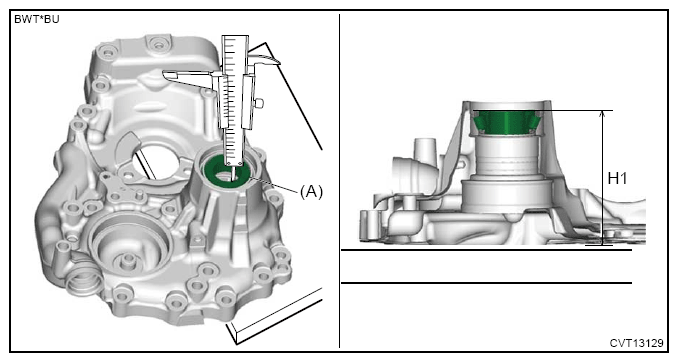

Measure the height "H1" from the end face of the taper roller bearing (rear) inner race to the surface plate.

Courtesy of SUBARU OF AMERICA, INC.

(A)	Taper roller bearing (rear) inner race

Set the taper roller bearing (front) inner race to the taper roller bearing (front) outer race.
NOTE: Be careful not to tilt the taper roller bearing (front) inner race when setting.

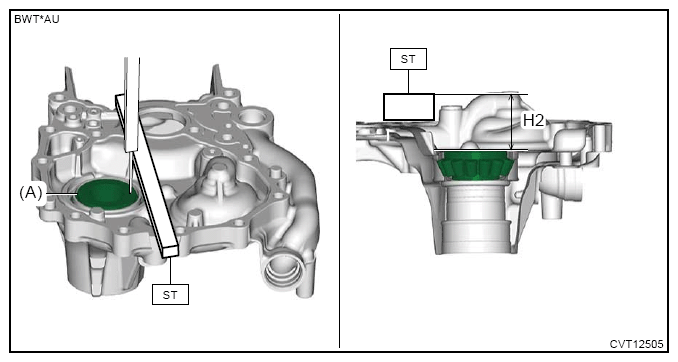

Using the ST, measure and record the height "H2" from the ST end face to the taper roller bearing (front) inner race.

Preparation tool:

ST: GAUGE (499575400)

Courtesy of SUBARU OF AMERICA, INC.

(A)	Taper roller bearing (front) inner race

Using the following calculation, calculate an appropriate thickness "T1" of the drive pinion washer.
NOTE: Adjust using 1 - 3 pieces.

T1 = H1 - (A + B + C + H2 - 15 mm (0.6 in))

T1	Drive pinion washer thickness (mm (in))
H1	Measured value (mm (in)) of step (5)
A	Measured value (mm (in)) of step (1)
B	Measured value (mm (in)) of step (2)
C	Measured value (mm (in)) of step (3)
H2	Measured value (mm (in)) of step (7)
15 mm (0.6 in)	Thickness of ST (GAUGE)

Select the drive pinion shim.

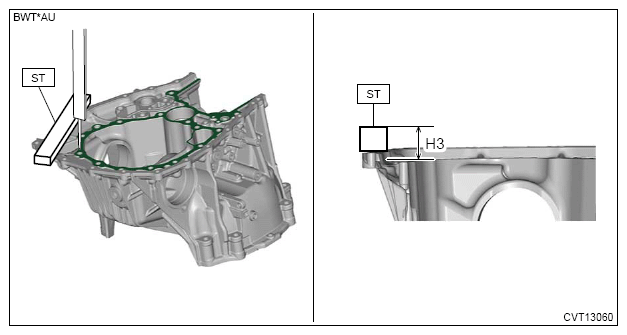

Using the ST, measure the height "H3" from the ST end face to the drive pinion retainer mating surface.

Preparation tool:

ST: GAUGE (499575400)

Courtesy of SUBARU OF AMERICA, INC.

Using the following calculation, calculate the height "H4" from the transmission case mating surface of the converter case to the drive pinion retainer mating surface.

H4 = H3 - 15 mm (0.6 in)

H4	Height (mm (in)) from the transmission case mating surface of the converter case to the drive pinion retainer mating surface
H3	Measured value (mm (in)) of step (1)
15 mm (0.6 in)	Thickness of ST (GAUGE)

Place the converter case on the surface plate.

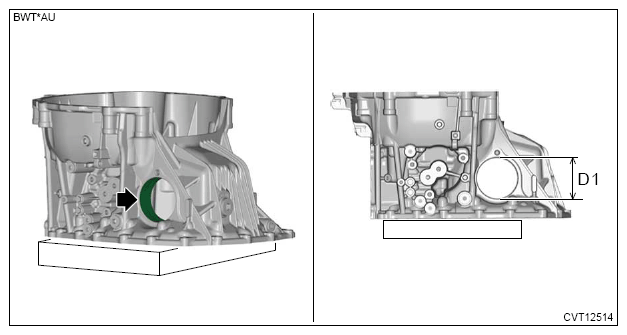

Measure the inner diameter "D1" of the differential side retainer installation hole of the converter case.

NOTE: Perform the measurement at the contact surface of the side bearing outer race.

Courtesy of SUBARU OF AMERICA, INC.

Using the following calculation, calculate the radius "R" of the differential side retainer installation hole.

R = D1/2

R	Differential side retainer installation hole radius (mm (in))
D1	Measured value (mm (in)) of step (4)

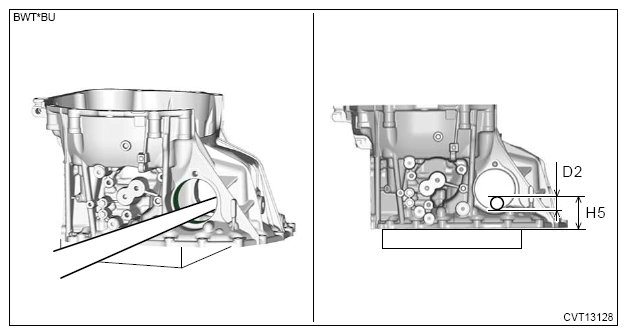

Prepare a high precision round bar, and measure the diameter "D2" of the round bar.

Set the round bar on the installation hole of the differential side retainer, and measure the height "H5" from the surface plate to the top end of the round bar.

Courtesy of SUBARU OF AMERICA, INC.

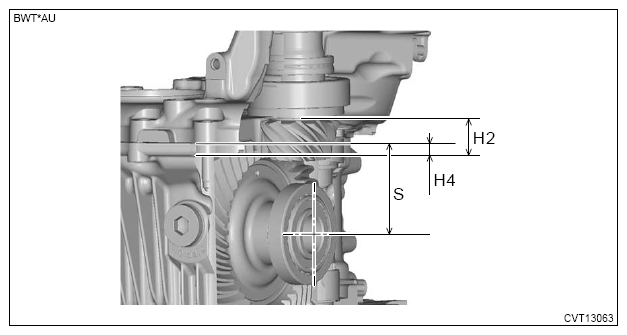

Using the following calculation, calculate the height "H6" from the bottom end of the differential side retainer installation hole to the transmission case mating surface of the converter case.

H6 = H5 - D2

H6	Height (mm (in)) from the bottom end of the differential side retainer installation hole to the transmission case mating surface of the converter case
H5	Measured value (mm (in)) of step (7)
D2	Measured value (mm (in)) of step (6)

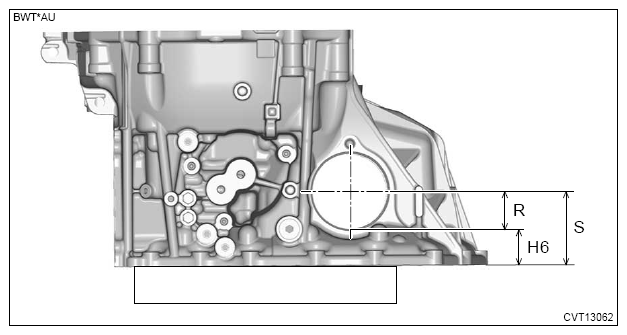

Using the following calculation, calculate the distance "S" from the center of the front differential to the transmission case mating surface of the converter case.

S = R + H6

S	Distance (mm (in)) from the center of the front differential to the transmission case mating surface of the converter case
R	Calculated value (mm (in)) of step (5)
H6	Calculated value (mm (in)) of step (8)

Courtesy of SUBARU OF AMERICA, INC.

Using the following calculation, calculate an appropriate thickness "T2" of the drive pinion shim.
NOTE: Adjust using 1 - 3 pieces.

T2 = (S - H4 + H2 - 15 mm (0.6in)) - 90.8 mm (3.57in)

T2	Drive pinion shim thickness (mm (in))
S	Calculated value (mm (in)) of step (9)
H4	Calculated value (mm (in)) of step (2)
H2	Measured value (mm (in)) of installation step 2. (7).
15 mm (0.6 in)	Thickness of ST (GAUGE)
90.8 mm (3.57 in)	Ideal distance from the front differential center to the drive pinion end surface

Courtesy of SUBARU OF AMERICA, INC.

Set the drive pinion shim.

Courtesy of SUBARU OF AMERICA, INC.
Using the ST1, ST2 and a press, press-fit the taper roller bearing (front) inner race measured in step 2. (1).
Preparation tool:

ST1: INSTALLER (899580100)

ST2: EXTENSION DRIVE SHAFT (927130000)

Courtesy of SUBARU OF AMERICA, INC.

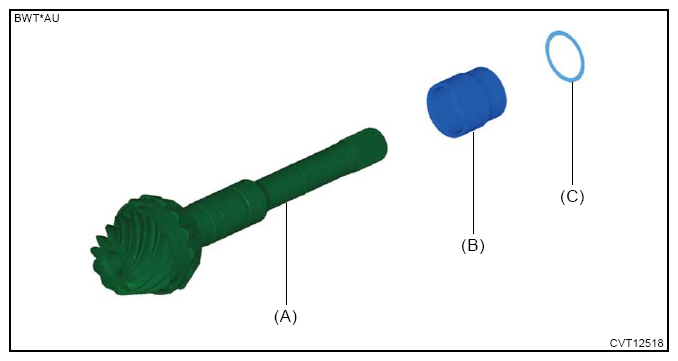

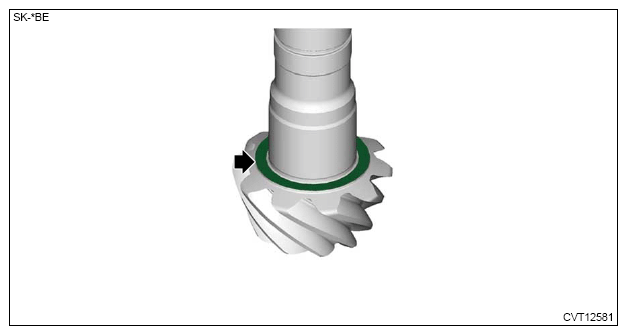

Install the drive pinion spacer measured in step 2. (3) and the drive pinion washer calculated in step 2. (8).

NOTE: Install the O-ring after checking and adjusting the tooth contact of hypoid gear set.

Courtesy of SUBARU OF AMERICA, INC.

(A)	Drive pinion
(B)	Drive pinion spacer
(C)	Drive pinion washer

Set the drive pinion.
CAUTION: Be careful not to damage the oil seal.

NOTE: Apply differential gear oil to the oil seal lip.

Courtesy of SUBARU OF AMERICA, INC.
Temporarily attach the taper roller bearing (rear) inner race measured in step 2. (2) and the lock nut.
NOTE:
- Apply differential gear oil to the threaded portion of the drive pinion.
- Use the lock nut removed when disassembling.
Courtesy of SUBARU OF AMERICA, INC.

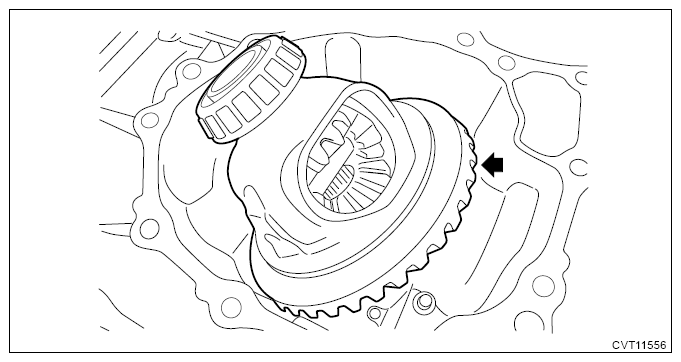

Set the differential case.
CAUTION: Be careful not to damage the attachment section of the differential side retainer.

Courtesy of SUBARU OF AMERICA, INC.

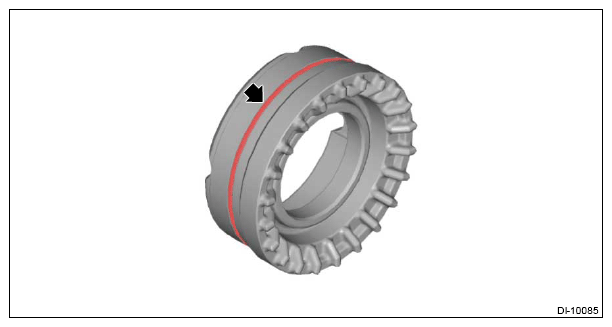

Set the side bearing outer race, and temporarily install the differential side retainers using the ST.
NOTE:
- Replace the O-ring with a new one after checking and adjusting the tooth contact of hypoid gear set.
- When there is no replacement of the side bearing inner race, do not confuse the left side and right side.
Preparation tool:

ST: WRENCH COMPL RETAINER (18658AA021)

Courtesy of SUBARU OF AMERICA, INC.

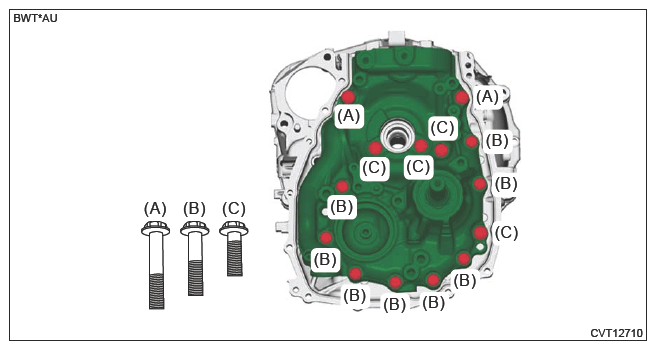

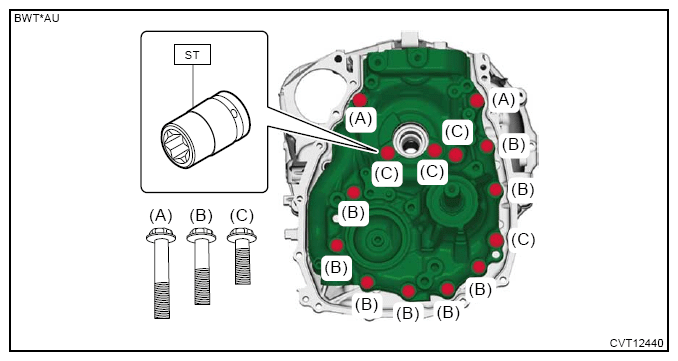

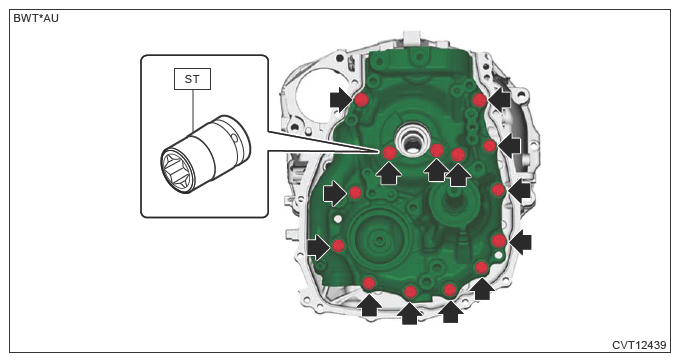

Using the ST, install the drive pinion retainer.

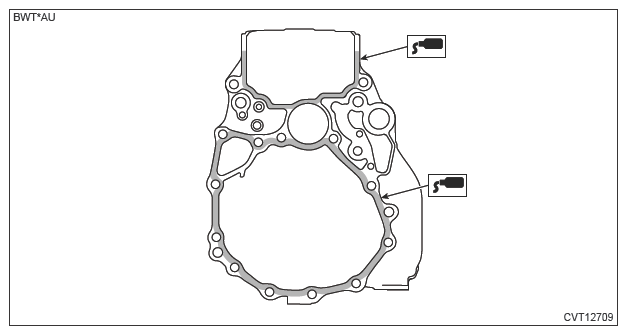

NOTE: Apply liquid gasket and install the O-ring after checking and adjusting the tooth contact of hypoid gear set.

Preparation tool:

ST: SOCKET (E20) (18270KA020)

Tightening torque:

43 N.m (4.4 kgf-m, 31.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

(A)	M10 x 54
(B)	M10 x 45
(C)	M10 x 33

Hypoid gear set backlash adjustment

Rotate the drive pinion ten times or more using ST1 and ST2.

Preparation tool:

ST1: HOLDER (498937110)

ST2: WRENCH (499787700)

Courtesy of SUBARU OF AMERICA, INC.

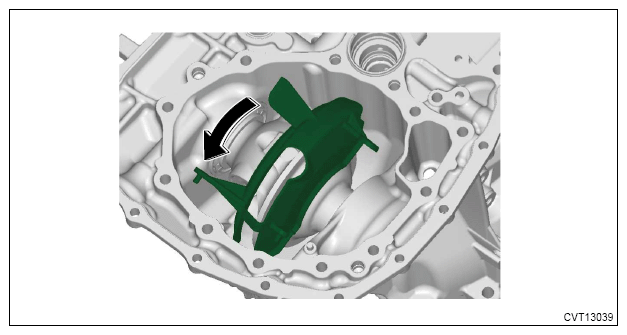

While rotating the drive pinion, loosen the differential side retainer (RH) using ST, and tighten the differential side retainer (LH) until the drive pinion does not rotate anymore.
NOTE: The backlash is "zero" when the drive pinion comes to the point where it does not rotate.

Preparation tool:

ST: WRENCH COMPL RETAINER (18658AA021)

Return the differential side retainer (LH) by 3 teeth and secure it with the lock plate.

Courtesy of SUBARU OF AMERICA, INC.

(A)

One tooth

Courtesy of SUBARU OF AMERICA, INC.

Tighten until the differential side retainer (RH) does not rotate anymore.
CAUTION: Do not tighten with excessive force.
Rotate the drive pinion 2 or 3 times.
Further tighten the differential side retainer (RH) by 1 3/4 teeth.
NOTE: This sets the preload.

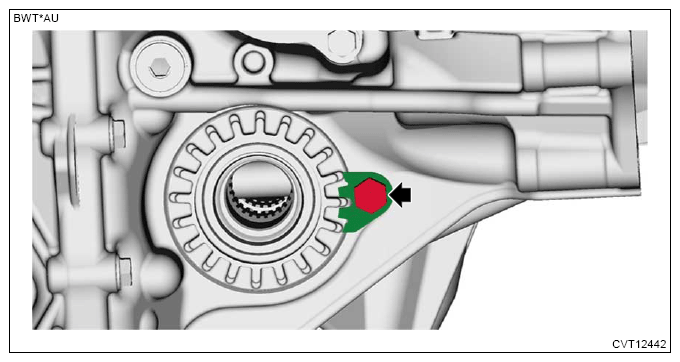

Fix the differential side retainer (RH) with the lock plate.

Courtesy of SUBARU OF AMERICA, INC.

Attach the ST to the converter case.
NOTE: The ST is a SUBARU genuine part.

Preparation tool:

ST: AXLE SHAFT (38415AA070)

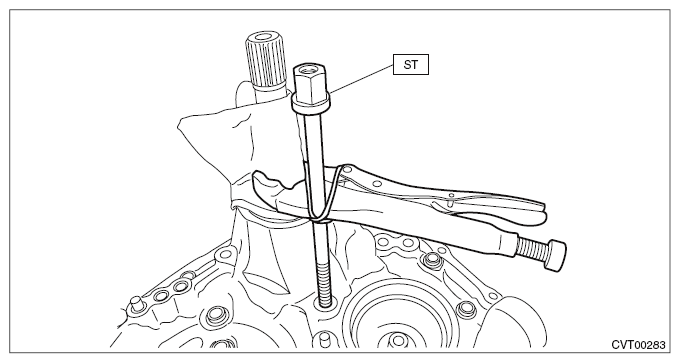

Install the ST to the drive pinion retainer, and wrap the drive pinion with cloth and pinch with vise pliers.

Using a tie-wrap or a wire, fix the vise pliers to the ST.

NOTE: Make sure the drive pinion does not move.

Preparation tool:

ST: COMPRESSOR SHAFT (18763AA000)

Courtesy of SUBARU OF AMERICA, INC.

Measure the backlash using ST, dial gauge (lever type) and magnet stand.

Preparation tool:

ST: PLATE (498255400)

Specification:

0.13 - 0.18 mm (0.005 - 0.007 in)

Courtesy of SUBARU OF AMERICA, INC.

If the backlash is outside the standard

NOTE: Turning the differential side retainer by one tooth changes the backlash approx. 0.05 mm (0.002 in).

Courtesy of SUBARU OF AMERICA, INC.

(A)

One tooth

When the backlash is too small
Loosen the differential side retainer (LH) by the required numbers of teeth, and tighten the differential side retainer (RH) by the same numbers of teeth.
When the backlash is too large
Loosen the differential side retainer (RH) by the required numbers of teeth, and tighten the differential side retainer (LH) by the same numbers of teeth.

Remove the ST (compressor shaft) and vise pliers.

Checking and adjusting the tooth contact of hypoid gear set

Using the ST, remove the drive pinion retainer.

Preparation tool:

ST: SOCKET (E20) (18270KA020)

Courtesy of SUBARU OF AMERICA, INC.

Apply lead-free red dye evenly on the three to four teeth of the driven gear.

Using the ST, install the drive pinion retainer.

Tightening torque:

43 N.m (4.4 kgf-m, 31.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

(A)	M10 x 54
(B)	M10 x 45
(C)	M10 x 33

Rotate the drive pinion back and forth several times using ST1 and ST2, and check the tooth contact pattern.

NOTE:

If proper tooth contact is not obtained, readjust the backlash of hypoid gear set and drive pinion shim.
Wipe off the lead-free red dye completely after the check and adjustment are completed.

Preparation tool:

ST1: HOLDER (498937110)

ST2: WRENCH (499787700)

Courtesy of SUBARU OF AMERICA, INC.

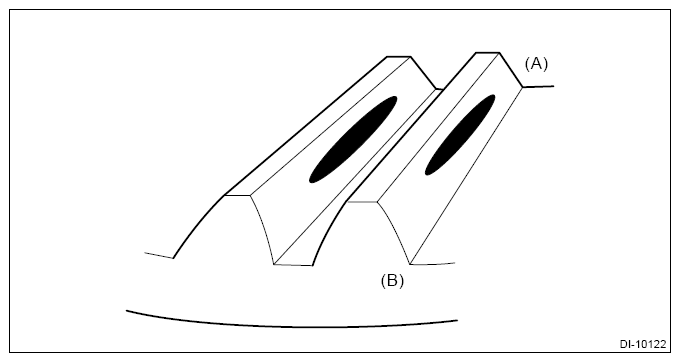

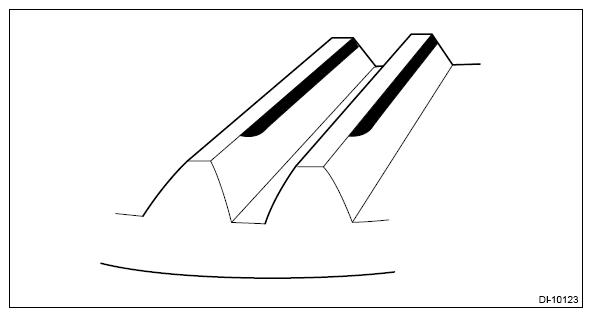

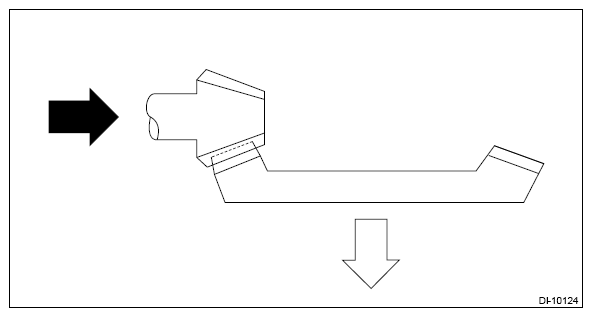

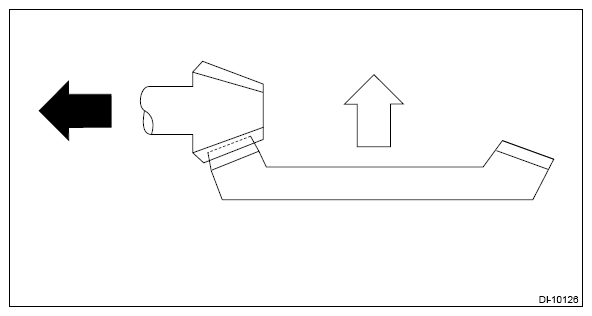

Correct tooth contact

Tooth contact pattern is slightly shifted toward toe side under no-load rotation. (When driving, it moves towards the heel side.)

Courtesy of SUBARU OF AMERICA, INC.

(A)	Toe side (inside)
(B)	Heel side (outside)

Face contact

Cause: Excessive backlash

Courtesy of SUBARU OF AMERICA, INC.

Adjustment: Loosen the differential side retainer (RH) by the required numbers of teeth, and tighten the differential side retainer (LH) by the same numbers of teeth.

Otherwise, adjust the drive pinion shim thickness and move the drive pinion to the driven gear side.

Courtesy of SUBARU OF AMERICA, INC.

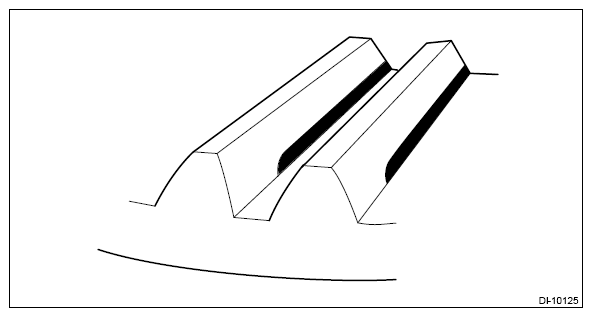

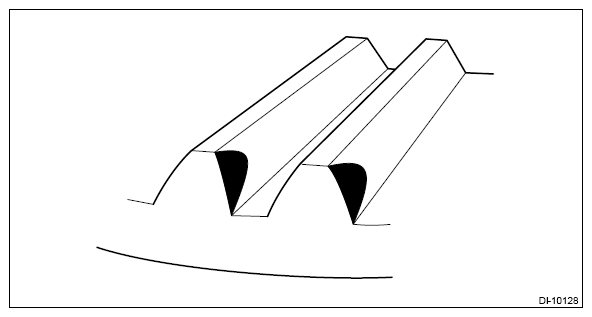

Flank contact

Cause: Too small backlash

Courtesy of SUBARU OF AMERICA, INC.

Adjustment: Loosen the differential side retainer (LH) by the required numbers of teeth, and tighten the differential side retainer (RH) by the same numbers of teeth.

Otherwise, adjust the drive pinion shim thickness and separate the drive pinion from the driven gear.

Courtesy of SUBARU OF AMERICA, INC.

Toe contact (inside contact)

Cause: Teeth contact area is too small.

Courtesy of SUBARU OF AMERICA, INC.

Adjustment: Adjust the drive pinion shim thickness and separate the drive pinion from the driven gear.

Courtesy of SUBARU OF AMERICA, INC.

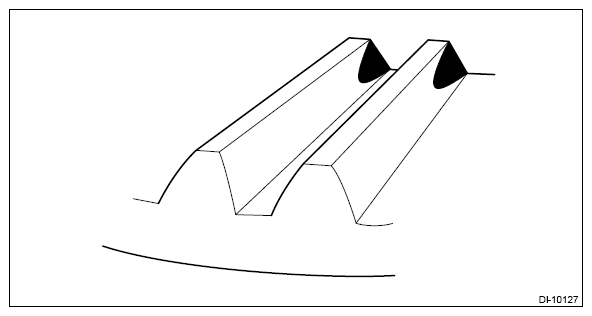

Heel contact (outside end contact)
Cause: Teeth contact area is too small.

Courtesy of SUBARU OF AMERICA, INC.

Adjustment: Adjust the drive pinion shim thickness and move the drive pinion to the driven gear side.

Courtesy of SUBARU OF AMERICA, INC.

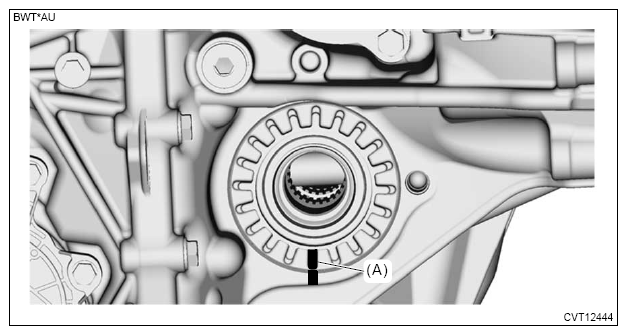

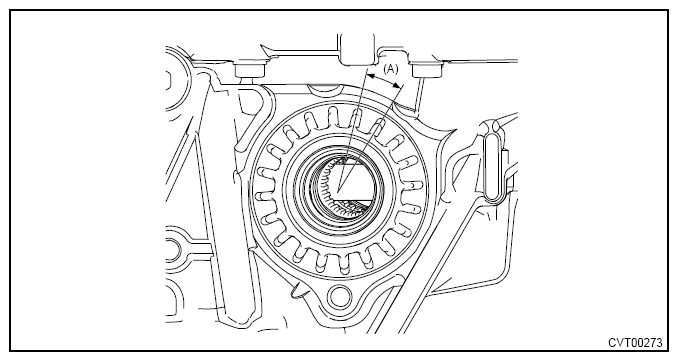

Put alignment marks (A) on the converter case and differential side retainer.

Courtesy of SUBARU OF AMERICA, INC.
Install a new O-ring to the differential side retainer.
NOTE: Perform this procedure one side first, then the other side.
1. Using the ST, loosen the differential side retainer until the mounting groove of the O-ring appears.
  NOTE: Record the number of the turns loosened.

  Preparation tool:

  ST: WRENCH COMPL RETAINER (18658AA021)
2. Fit a new O-ring, and tighten the differential side retainer into the position before it was loosened.
  NOTE: Apply the differential gear oil to O-ring.
Courtesy of SUBARU OF AMERICA, INC.
Install the lock plate.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Using the ST, remove the drive pinion retainer.
Preparation tool:

ST: SOCKET (E20) (18270KA020)

Courtesy of SUBARU OF AMERICA, INC.
Remove the lock nut using ST1, ST2 and ST3.
Preparation tool:

ST1: ADAPTER (499787500)

ST2: WRENCH (499787700)

ST3: HOLDER (498937110)

Courtesy of SUBARU OF AMERICA, INC.
Remove the drive pinion.

Courtesy of SUBARU OF AMERICA, INC.

Remove the drive pinion washer and drive pinion spacer.

Courtesy of SUBARU OF AMERICA, INC.

(A)	Drive pinion
(B)	Drive pinion spacer
(C)	Drive pinion washer

Install a new O-ring.
NOTE: Apply the differential gear oil to O-ring.

Courtesy of SUBARU OF AMERICA, INC.

Install the drive pinion spacer and drive pinion washer.

Courtesy of SUBARU OF AMERICA, INC.

(A)	Drive pinion
(B)	Drive pinion spacer
(C)	Drive pinion washer

Set the drive pinion.
CAUTION: Be careful not to damage the oil seal.

NOTE: Apply differential gear oil to the oil seal lip.

Courtesy of SUBARU OF AMERICA, INC.

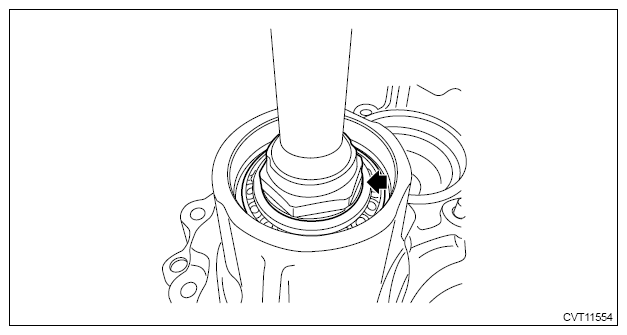

Temporarily install the lock nut.
CAUTION: Be sure to use a new lock nut.

NOTE: Apply differential gear oil to the threaded portion of the drive pinion.

Courtesy of SUBARU OF AMERICA, INC.

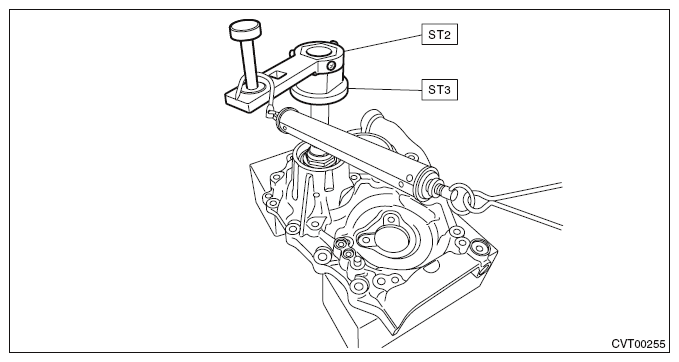

Using the ST1, ST2, ST3 and a spring scale, tighten the lock nut by adjusting within the specified tightening torque so that the initial load of the drive pinion is within the specified range.

CAUTION:

Before checking the initial load, apply differential gear oil to the roller part of taper roller bearing, and rotate it several times to measure the value.
If the initial load exceeds the specification before the tightening torque reaches the lower limit, immediately stop the tightening.

Initial load:

Standard

7.3 - 23.1 N (0.74 - 2.36 kgf, 1.64 - 5.19 lbf)

Courtesy of SUBARU OF AMERICA, INC.

Preparation tool:

ST1: ADAPTER (499787500)

ST2: WRENCH (499787700)

ST3: HOLDER (498937110)

Tightening torque:

Calculation formula

T = 170 - 250 N.m (17.3 - 25.5 kgf-m, 125.4 - 184.4 ft-lb) x L/(72.2 mm (2.84 in) + L)

T: Tightening torque

L: Effective length of torque wrench

NOTE: If the effective length of the torque wrench used is unknown, consult the manufacturer of the torque wrench.

Courtesy of SUBARU OF AMERICA, INC.

(a)	Effective length of the ST (72.2 mm (2.84 in))
(b)	Effective length of the torque wrench (L)
(c)	Center of drive square of the ST
(d)	Center of drive square of the torque wrench
(e)	Center of the position where a force is applied by hand

Courtesy of SUBARU OF AMERICA, INC.

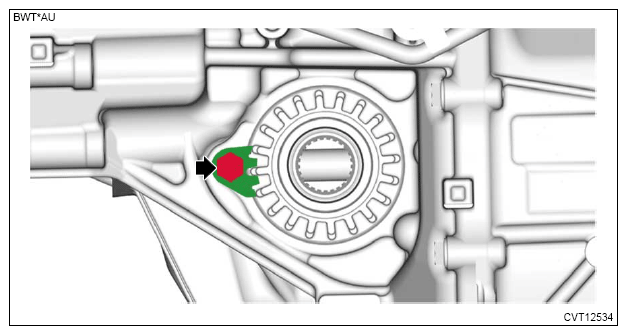

Crimp the lock nut in 2 locations.
Install a new plug using ST1, ST2, ST3 and a press.
Preparation tool:

ST1: PRESS SNAP RING (499755602)

ST2: INSTALLER (398177700)

ST3: INSTALLER (899580100)

Courtesy of SUBARU OF AMERICA, INC.

(A) 6.1 - 6.6 mm (0.24 - 0.26 in)
Install the oil baffle.

Courtesy of SUBARU OF AMERICA, INC.
Install a new O-ring.
NOTE: Apply CVTF to the O-rings.

Courtesy of SUBARU OF AMERICA, INC.

Apply liquid gasket to the mating surface of the drive pinion retainer as shown in the figure, and temporarily install the drive pinion retainer.

NOTE:

Before applying liquid gasket, degrease the old liquid gasket seal surface of the drive pinion retainer and converter case.
Install within 5 min. after applying liquid gasket.

Liquid gasket:

THREE BOND 1216J or equivalent

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

(A)	M10 x 54
(B)	M10 x 45
(C)	M10 x 33

Tighten the bolts securing the drive pinion retainer.
Special tool:

SOCKET (E20) (18270KA020)

Tightening torque:

43 N.m (4.4 kgf-m, 31.7 ft-lb)
Install the reverse brake. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>REVERSE BRAKE>INSTALLATION .
