Drive Pinion: Removal

Remove the reverse brake. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>REVERSE BRAKE>REMOVAL .
Using the ST, remove the bolts securing the drive pinion retainer.
Preparation tool:

ST: SOCKET (E20) (18270KA020)

Courtesy of SUBARU OF AMERICA, INC.

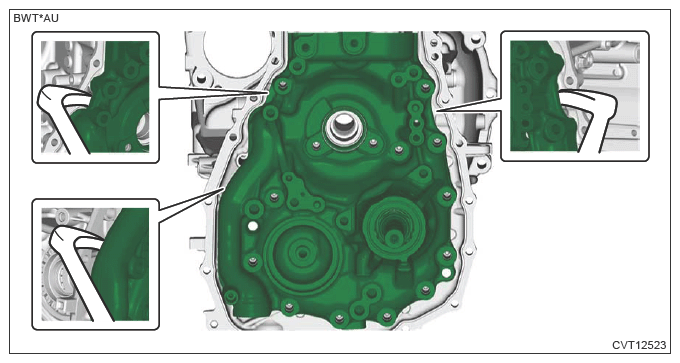

Using a crowbar or similar wrapped with protective tape, expand the clearance and remove the drive pinion retainer.

Courtesy of SUBARU OF AMERICA, INC.
Remove the O-rings.

Courtesy of SUBARU OF AMERICA, INC.
Remove the oil baffle.

Courtesy of SUBARU OF AMERICA, INC.
Remove the lock plate.

Courtesy of SUBARU OF AMERICA, INC.
Remove the differential side retainer and side bearing outer race using the ST.
NOTE:
- When the ST interferes with the converter case, align the cutout portion with the interference part.
- Support the differential case by hand to avoid damaging the retainer mounting bolt hole of the converter case.
- When there is no replacement of the side bearing inner race, do not confuse the left side and right side.
Preparation tool:

ST: WRENCH COMPL RETAINER (18658AA021)

Courtesy of SUBARU OF AMERICA, INC.
Remove the differential case.
CAUTION: Be careful not to damage the attachment section of the differential side retainer.

Courtesy of SUBARU OF AMERICA, INC.
Remove the O-rings.

Courtesy of SUBARU OF AMERICA, INC.
Remove the liquid gasket from the drive pinion retainer and converter case.
