Electric Fluid Pump: Installation

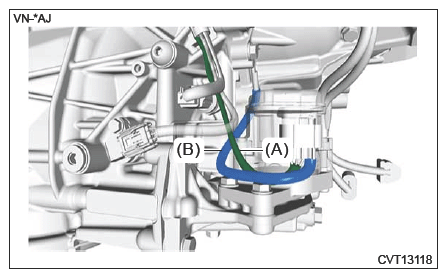

NOTE: Check that the electric oil pump ground wire is under the electric oil pump signal line.

Courtesy of SUBARU OF AMERICA, INC.

(A)	Electric oil pump signal line
(B)	Electric oil pump ground wire

Tightening torque:

22 N.m (2.2 kgf-m, 16.2 ft-lb)

1. Remove the filler plug (CVTF).

   Courtesy of SUBARU OF AMERICA, INC.

2. Pour the specified CVTF to the bottom end of filler plug hole.
   CAUTION: Always use specified CVTF. Using fluid other than specified CVTF will cause malfunction.
   NOTE: In order to avoid improper filling of CVTF, the upper part of the filler plug hole is stamped with the mark of CVTF-3.

   CVTF:

   Ref. to RECOMMENDED MATERIALS .

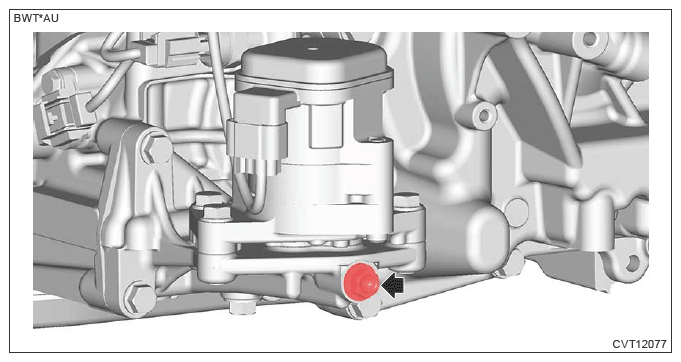

3. Remove the plug shown in the figure, and let the CVTF drain from the plug hole for 5 seconds or more.

   Courtesy of SUBARU OF AMERICA, INC.

4. Install the plugs with new O-rings.
   NOTE: Apply CVTF to the O-rings.

   Tightening torque:

   16 N.m (1.6 kgf-m, 11.8 ft-lb)

5. Pour the specified CVTF to the bottom end of filler plug hole.
   CAUTION: Always use specified CVTF. Using fluid other than specified CVTF will cause malfunction.
   NOTE: In order to avoid improper filling of CVTF, the upper part of the filler plug hole is stamped with the mark of CVTF-3.

   CVTF:

   Ref. to RECOMMENDED MATERIALS .
