Extension Case: Disassembly

  1. Remove the dust cover.
    G13936084Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the extension case oil seal. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>EXTENSION CASE OIL SEAL>REPLACEMENT .

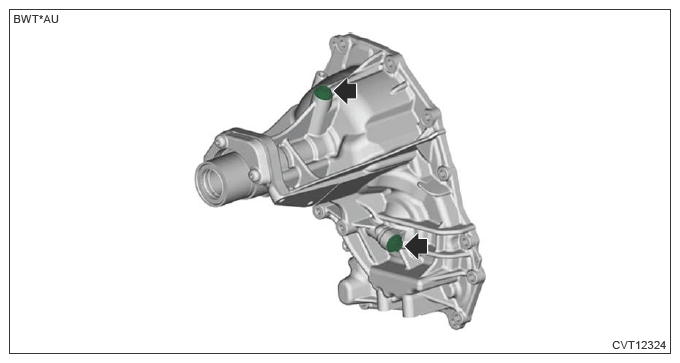

  3. Remove all plugs.
    G13936085Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the weight.
G13936086Courtesy of SUBARU OF AMERICA, INC.
