Planetary Carrier

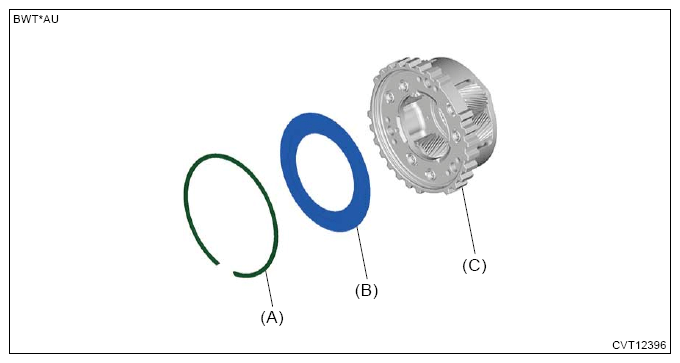

  1. Install the balance oil guide and snap ring.
    G16342354Courtesy of SUBARU OF AMERICA, INC.
    (A) Snap ring
    (B) Balance oil guide
    (C) Planetary carrier

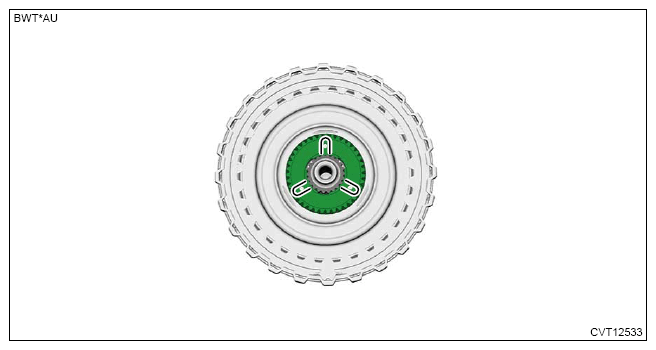

  2. Install the sun gear.
    NOTE: Make sure to install in the right direction.
    G13936284Courtesy of SUBARU OF AMERICA, INC.

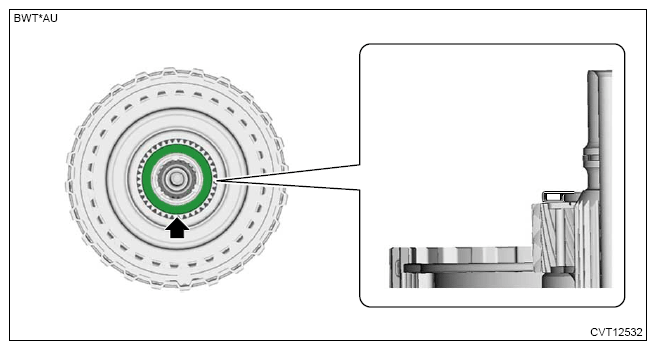

  3. Install the thrust bearing.
    NOTE: Make sure to install in the right direction.
    G13936285Courtesy of SUBARU OF AMERICA, INC.

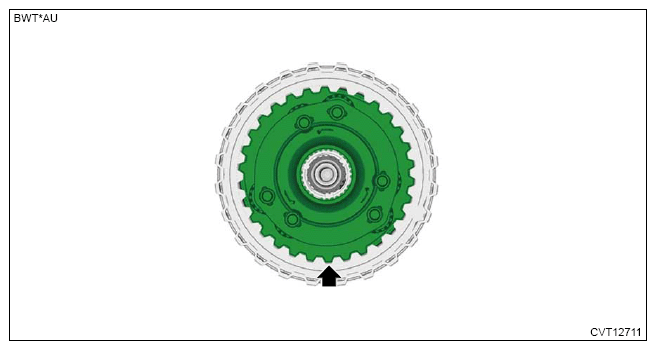

  4. Install the planetary carrier.
    G13936286Courtesy of SUBARU OF AMERICA, INC.

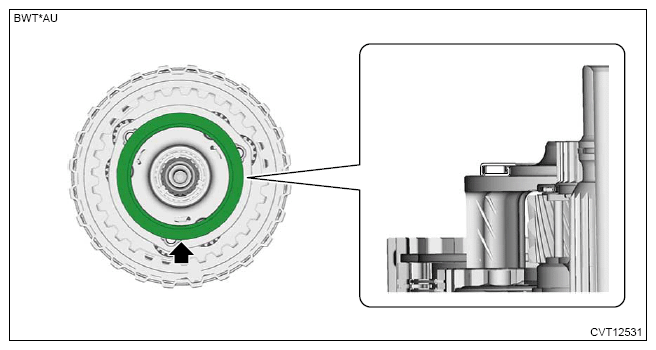

  5. Install the thrust bearing.
    NOTE: Make sure to install in the right direction.
G13936287Courtesy of SUBARU OF AMERICA, INC.
