Planetary Carrier

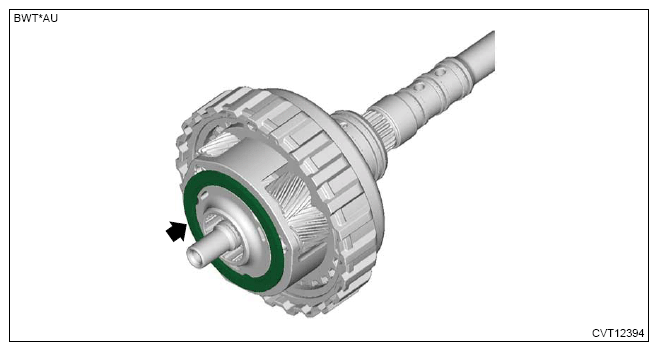

  1. Remove the thrust bearing.
    G13936266Courtesy of SUBARU OF AMERICA, INC.

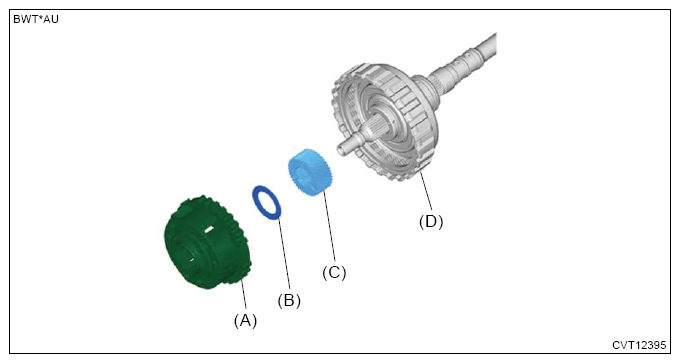

  2. Remove the planetary carrier, thrust bearing and sun gear.
    G16342353Courtesy of SUBARU OF AMERICA, INC.
    (A) Planetary carrier
    (B) Thrust bearing
    (C) Sun gear
    (D) Forward clutch drum
  3. Remove the snap ring and balance oil guide.
G16342354Courtesy of SUBARU OF AMERICA, INC.
(A) Snap ring
(B) Balance oil guide
(C) Planetary carrier
