CVTF Cooler (With Warmer Feature)

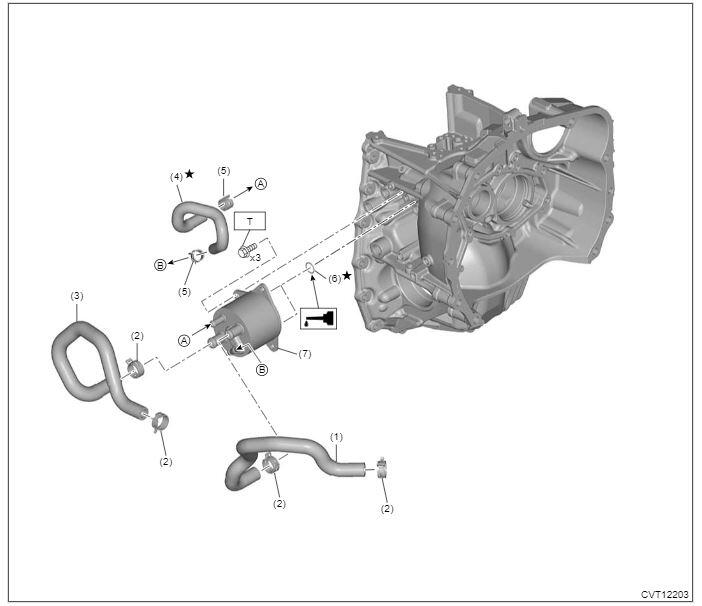

- Model without CVTF cooler (air cool)
| (1) | Water hose (outlet) |
| (2) | Hose clamp |
| (3) | Water hose (inlet) |
| (4) | CVTF cooler hose |
| (5) | Hose clamp |
| (6) | O-ring |
| (7) | CVTF cooler (with warmer feature) |
Tightening torque: N.m (kgf-m, ft-lb)
T: 19 (1.9, 14.0)

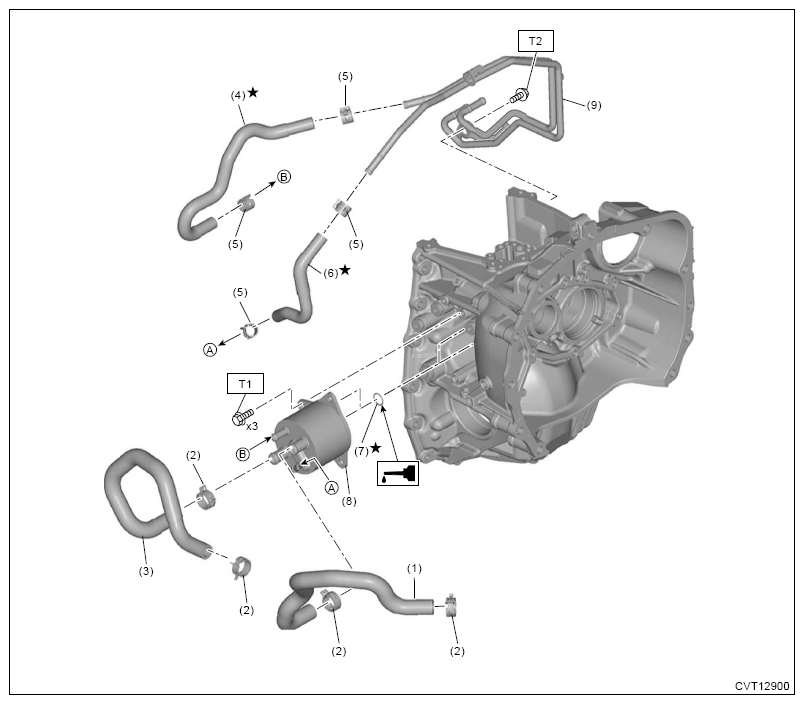

- Model with CVTF cooler (air cool)
| (1) | Water hose (outlet) |
| (2) | Hose clamp |
| (3) | Water hose (inlet) |
| (4) | CVTF cooler outlet hose |
| (5) | Hose clamp |
| (6) | CVTF cooler inlet hose |
| (7) | O-ring |
| (8) | CVTF cooler (with warmer feature) |
| (9) | CVTF cooler pipe No. 1 |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 19 (1.9, 14.0)
T2: 35 (3.6, 25.8)
