Electric Oil Pump

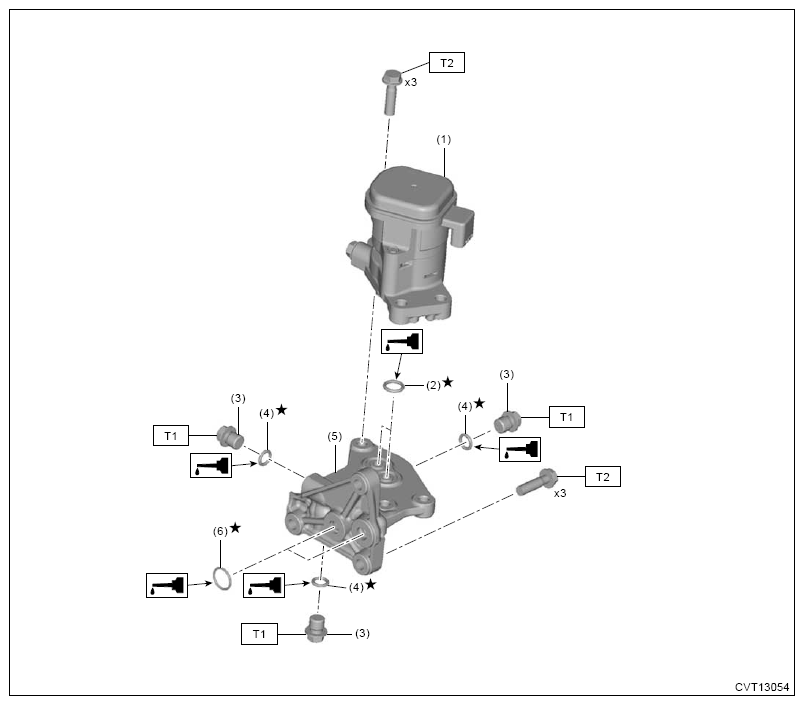

Fig 1: Electric Oil Pump Components Location
Courtesy of SUBARU OF AMERICA, INC.
(1)
Electric oil pump
(2)
O-ring
(3)
Plug
(4)
O-ring
(5)
Electric oil pump adapter
(6)
O-ring
Tightening torque: N.m (kgf-m, ft-lb)
T1: 16 (1.6, 11.8)
T2: 22 (2.2, 16.2)
Courtesy of SUBARU OF AMERICA, INC.
