Inhibitor Switch: Removal

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Release the shift lock using a screwdriver, etc. and shift the select lever to the "N range".

Courtesy of SUBARU OF AMERICA, INC.

Disconnect the select cable.

CAUTION: Do not apply excessive load while holding the part (a).

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

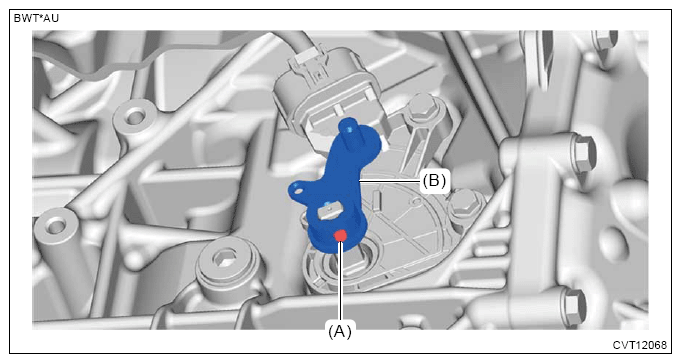

Remove the spring pin (A) and remove the shifter arm (B).

Courtesy of SUBARU OF AMERICA, INC.

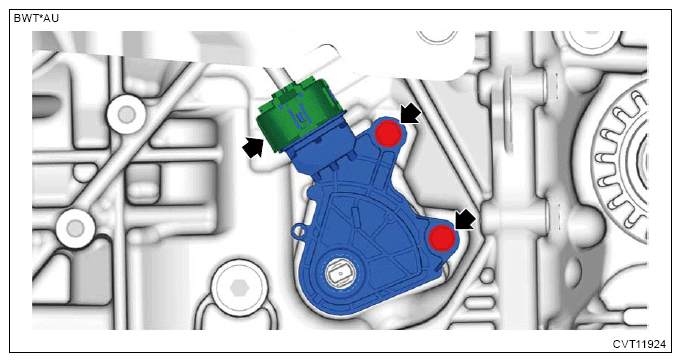

Disconnect the connector and remove the inhibitor switch.

Courtesy of SUBARU OF AMERICA, INC.
