Oil Pump Chain: Removal

Remove the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TORQUE CONVERTER>REMOVAL .
Remove the bolts which hold the oil pump chain cover.

Courtesy of SUBARU OF AMERICA, INC.

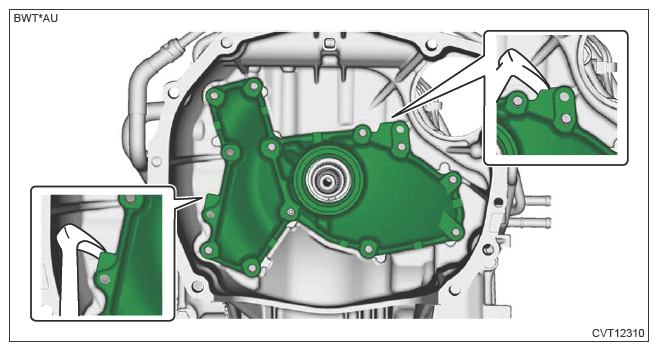

Using a crowbar or similar wrapped with protective tape, remove the oil pump chain cover, driven sprocket and oil pump chain.

Courtesy of SUBARU OF AMERICA, INC.
Remove the seal rings.

Courtesy of SUBARU OF AMERICA, INC.

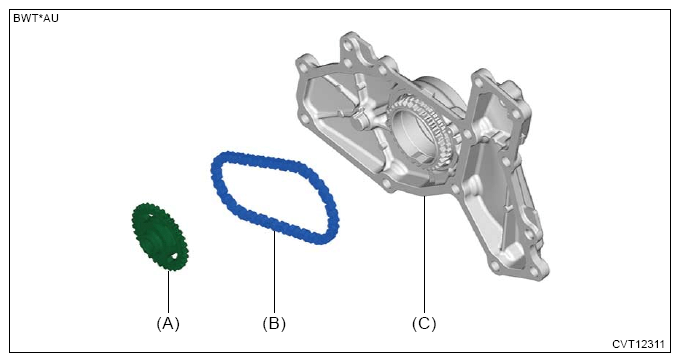

Remove the driven sprocket and oil pump chain.

CAUTION: If the ball bearing is removed from the driven sprocket, replace the driven sprocket with a new part.

NOTE: The driven sprocket is a non-disassembly part.

Courtesy of SUBARU OF AMERICA, INC.

Remove the snap ring and remove the drive sprocket.

Courtesy of SUBARU OF AMERICA, INC.

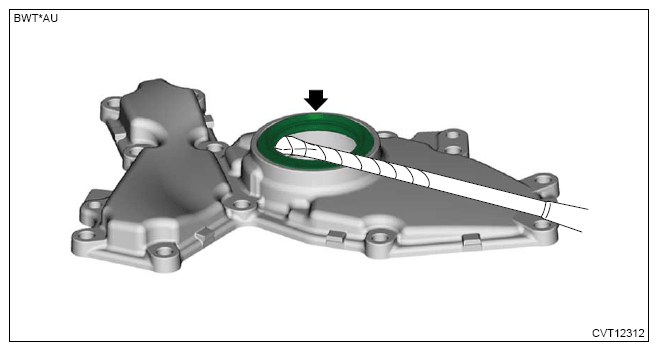

Remove the oil seal using a flat tip screwdriver wrapped with protection tape.

Courtesy of SUBARU OF AMERICA, INC.
Remove the liquid gasket from the oil pump chain cover and the converter case.
