After Overhaul

Remove the ST (STAND ASSY).
Install the air breather hose. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>AIR BREATHER HOSE>INSTALLATION .
Install the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TORQUE CONVERTER>INSTALLATION .
Remove the filler plug (for overhaul), and refill approx. 10 L (10.6 US qt, 8.8 Imp qt) of CVTF.
CAUTION: Always use specified CVTF. Using fluid other than specified CVTF will cause malfunction.

CVTF:

Ref. to RECOMMENDED MATERIALS .

Courtesy of SUBARU OF AMERICA, INC.

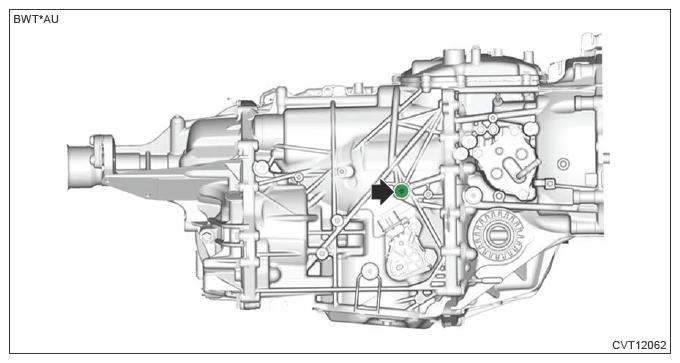

Using a new gasket, install the filler plug (for overhaul).
Tightening torque:

50 N.m (5.1 kgf-m, 36.9 ft-lb)
