Primary Pressure Sensor: Removal
CAUTION:
- Vehicle components are extremely hot immediately after driving. Be wary of receiving burns from heated parts.
- If water or oil contacts the connector terminal of primary pressure sensor, replace it with a new part.
NOTE:
The primary pressure sensor is installed on the WILDERNESS model.
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the front wheel RH. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
- Remove the crossmember support rear RH. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>REMOVAL .

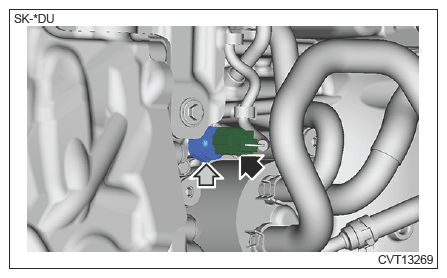

- Disconnect the connector, and remove the primary pressure sensor.CAUTION: Prepare the container for draining of CVTF.
- Remove the O-ring from the primary pressure sensor.
