Primary Speed Sensor: Removal

CAUTION: If water or oil contacts the connector terminal of primary speed sensor, replace it with a new part.
  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TRANSMISSION ASSEMBLY>REMOVAL .

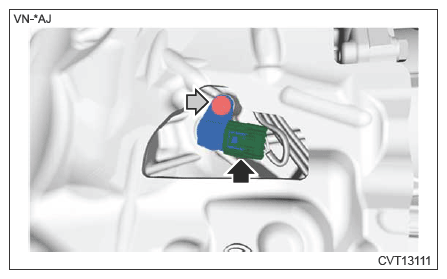

  2. Disconnect the connector, and remove the primary speed sensor.
    G14403580Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the O-ring from the primary speed sensor.
