Reduction Driven Gear: Assembly

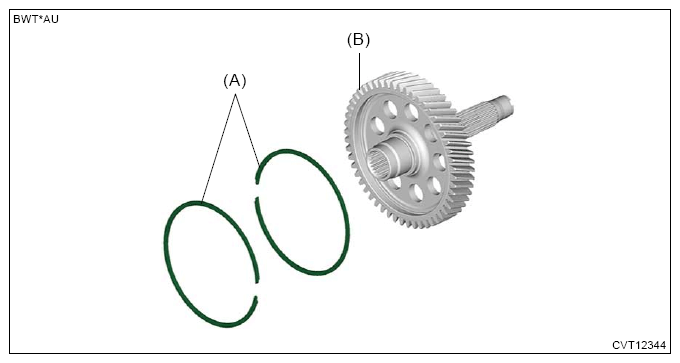

- Install the snap ring.NOTE: Make the openings deviated by 180°.

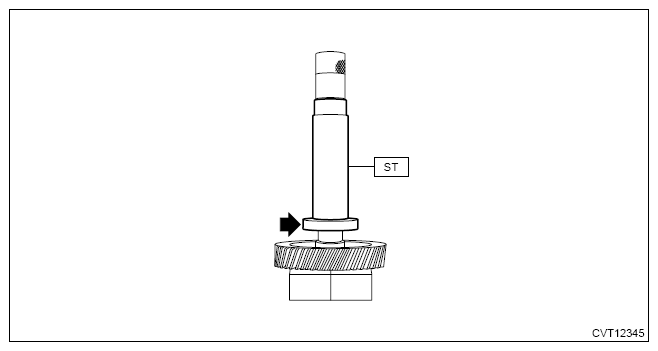

(A) Snap ring (B) Reduction driven gear - Using the ST and a press, press-fit a new ball bearing.NOTE: Apply CVTF to the press-fitting area.
Preparation tool:
ST: EXTENSION DRIVE SHAFT (927130000)

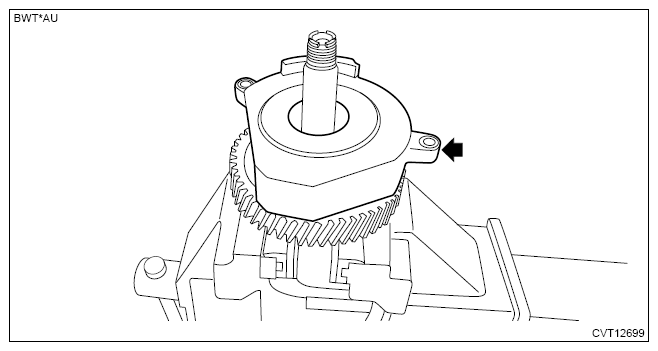

- Set the oil spacer.NOTE: Make sure to install in the right direction.

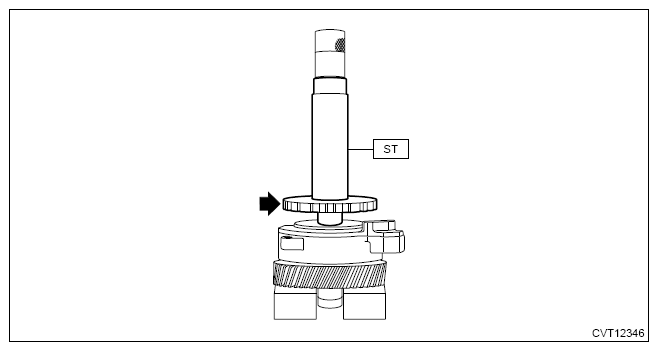

- Using the ST and a press, press-fit the parking gear.NOTE: Apply CVTF to the press-fitting area.
Preparation tool:
ST: EXTENSION DRIVE SHAFT (927130000)

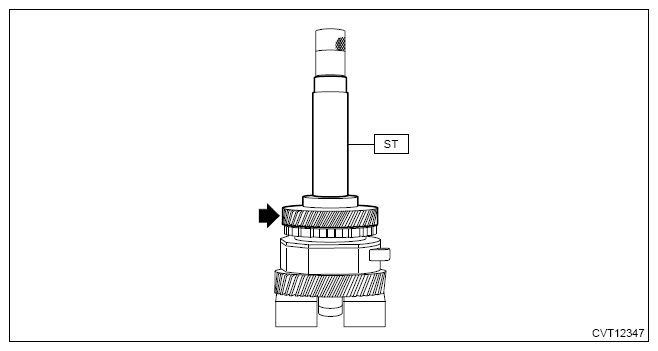

- Using the ST and a press, press-fit the transfer drive gear.NOTE: Apply CVTF to the press-fitting area.
Preparation tool:
ST: EXTENSION DRIVE SHAFT (927130000)

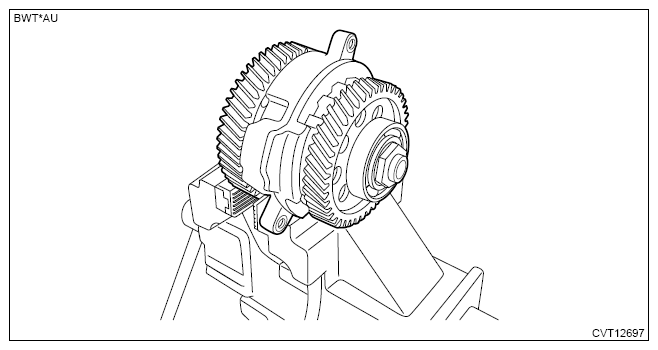

- Using a vise, secure the reduction driven gear, and temporarily install a new lock nut.CAUTION: Place aluminum plates or wooden pieces between the contacting surfaces of the vise and reduction driven gear to prevent reduction driven gear damage.

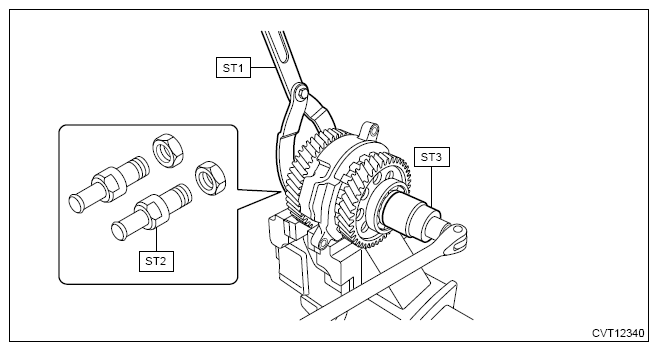

- Using ST1, ST2 and ST3, tighten the lock nut.
Preparation tool:
ST1: PULLEY WRENCH (18355AA000)
ST2: PULLEY WRENCH PIN SET (18334AA000)
ST3: SOCKET WRENCH (35) (499987003)
Tightening torque:
95 N.m (9.7 kgf-m, 70.1 ft-lb)

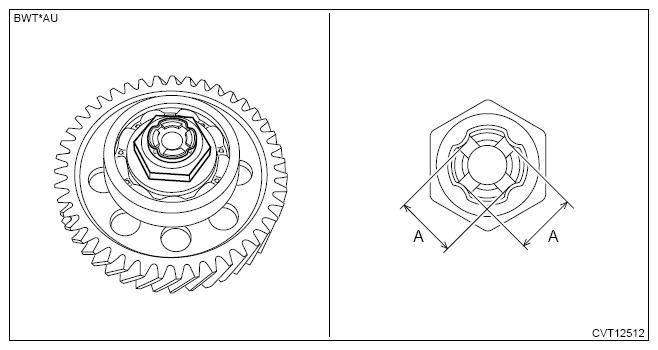

- Crimp the lock nut so that the dimension "A" shown in the figure becomes 18.9 mm (0.74 in) or less.CAUTION: Be careful not to crack the lock nut.
