Reduction Driven Gear: Disassembly

Using a vise, secure the reduction driven gear.
CAUTION: Place aluminum plates or wooden pieces between the contacting surfaces of the vise and reduction driven gear to prevent reduction driven gear damage.

Courtesy of SUBARU OF AMERICA, INC.

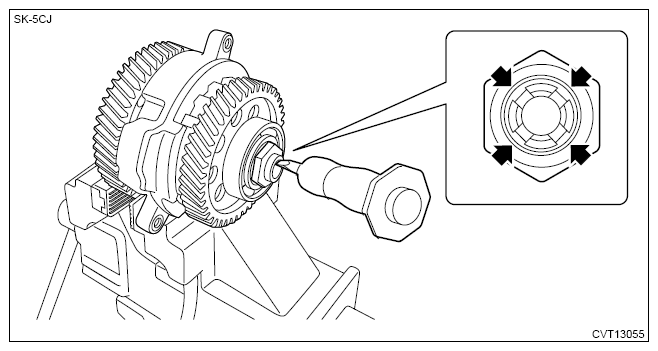

Flatten the tab of the lock nut.

Courtesy of SUBARU OF AMERICA, INC.
Using ST1, ST2 and ST3, remove the lock nut.
Preparation tool:

ST1: PULLEY WRENCH (18355AA000)

ST2: PULLEY WRENCH PIN SET (18334AA000)

ST3: SOCKET WRENCH (35) (499987003)

Courtesy of SUBARU OF AMERICA, INC.
Using the ST and a press, remove the transfer drive gear.
CAUTION:
- Do not place the ST over the parking gear.
- Be careful not to drop the reduction drive gear.
Preparation tool:

ST: BEARING REMOVER (18767AA000)

Courtesy of SUBARU OF AMERICA, INC.

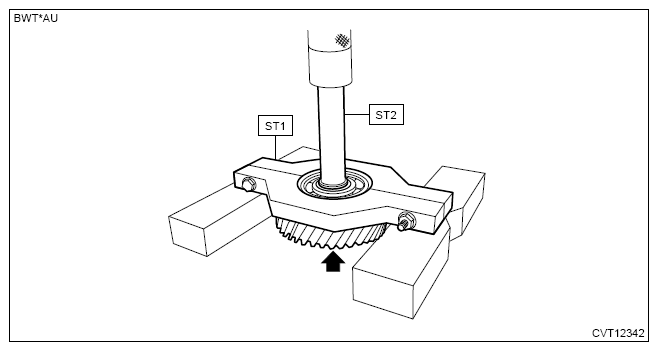

Remove the ball bearing using ST1, ST2 and a press.
CAUTION: Be careful not to drop the transfer drive gear.

Preparation tool:

ST1: REMOVER (498077300)

ST2: INSTALLER (18657AA000)

Courtesy of SUBARU OF AMERICA, INC.

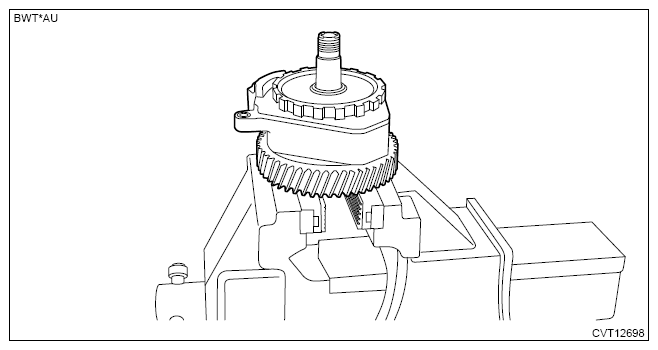

Using a vise, secure the reduction driven gear.
CAUTION: Place aluminum plates or wooden pieces between the contacting surfaces of the vise and reduction driven gear to prevent reduction driven gear damage.

Courtesy of SUBARU OF AMERICA, INC.

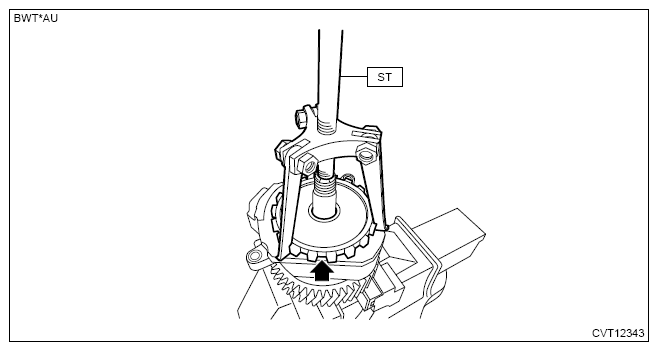

Using the ST, remove the parking gear.
Preparation tool:

ST: PULLER ASSY (399703600)

Courtesy of SUBARU OF AMERICA, INC.
Remove the oil spacer.

Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring.
NOTE: Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.

(A)	Snap ring
(B)	Reduction driven gear
