Reverse Brake: Disassembly

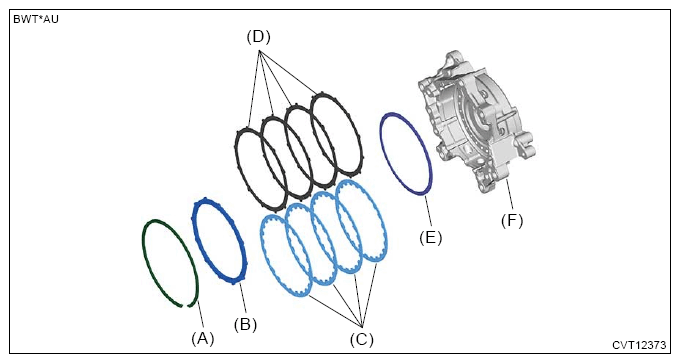

  1. Remove the snap ring, and then remove the retaining plate, drive plate, driven plate and dish plate.
    G16342338Courtesy of SUBARU OF AMERICA, INC.
    (A) Snap ring
    (B) Retaining plate
    (C) Drive plate
    (D) Driven plate
    (E) Dish plate
    (F) Reverse brake housing

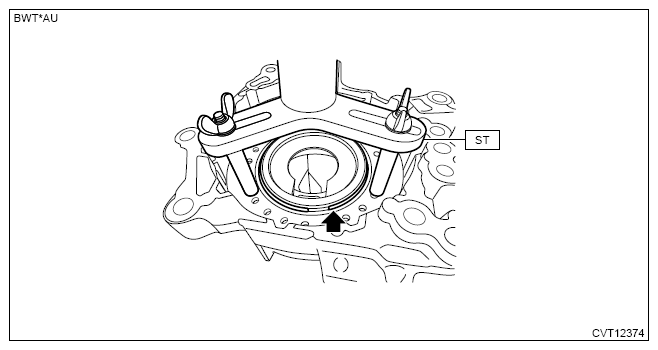

  2. Using the ST and a press, compress the spring retainer to remove the snap ring.

    Preparation tool:

    ST: COMPRESSOR SPECIAL TOOL (18762AA001)

    G13936253Courtesy of SUBARU OF AMERICA, INC.

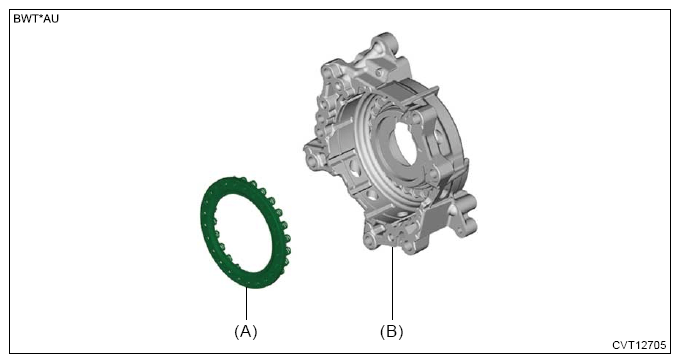

  3. Remove the spring retainer.
    G16342340Courtesy of SUBARU OF AMERICA, INC.
    (A) Spring retainer
    (B) Reverse brake housing

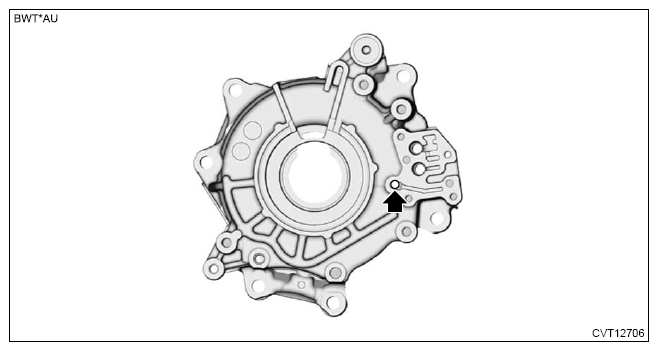

  4. Blow compressed air through the hole shown in the figure, and remove the reverse brake piston.
    G13936255Courtesy of SUBARU OF AMERICA, INC.

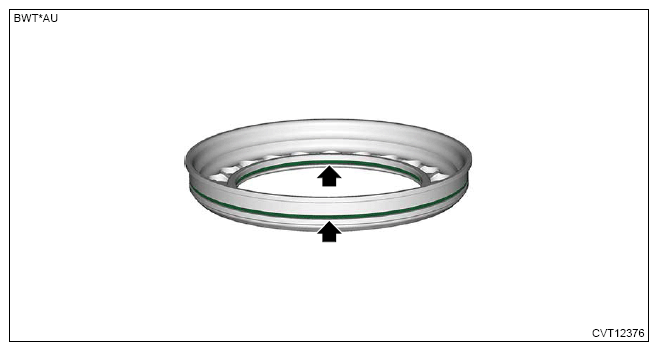

  5. Remove the D-rings.
G13936256Courtesy of SUBARU OF AMERICA, INC.
