Secondary Speed Sensor: Removal

CAUTION: If water or oil contacts the connector terminal of secondary speed sensor, replace it with a new part.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the front exhaust pipe. Ref. to EXHAUST (H4DO)>FRONT EXHAUST PIPE>REMOVAL .

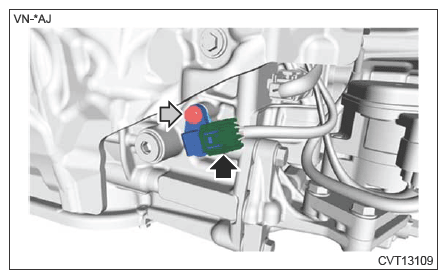

Disconnect the connector and remove the secondary speed sensor and the spacer.
CAUTION: Prepare the container for draining of CVTF.

Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring from the secondary speed sensor.
