Transmission Assembly: Removal

  1. Release the parking brake.
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Release the shift lock using a screwdriver, etc. and shift the select lever to the "N range".
    G13868655Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the clip from the air intake boot, and loosen the clamp.
    G13223823Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the air intake boot, and place it aside so that it does not interfere with the work.
    CAUTION: Be careful not to pull out the PCV hose.
    G13223824Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the CVTF cooler (with warmer feature). (Model without CVTF cooler (air cool))
    CAUTION: Prepare the container for draining of CVTF.
    1. Remove the CVTF cooler (with warmer feature), and move it aside so that it does not interfere with the operation. (Model without CVTF cooler (air cool))
    NOTE: Suspend from the vehicle body with rope, etc.
    G00674374Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the CVTF cooler (with warmer feature). (Model with CVTF cooler (air cool))
    CAUTION: Prepare the container for draining of CVTF.

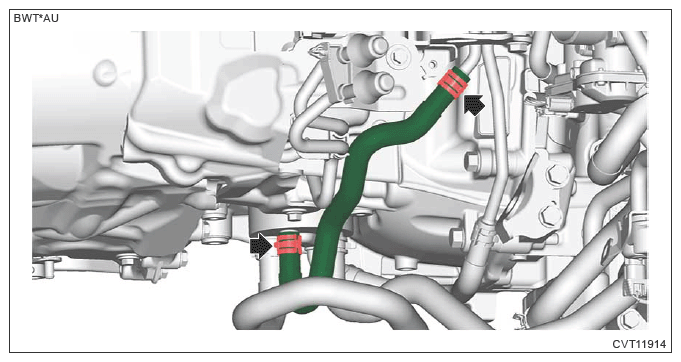

    1. Remove the CVTF cooler outlet hose.
      G13621573Courtesy of SUBARU OF AMERICA, INC.

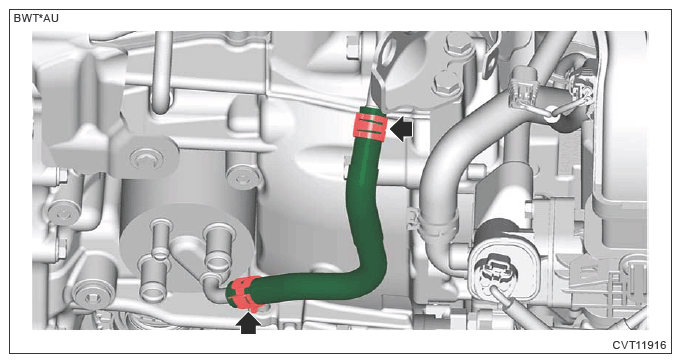

    2. Remove the CVTF cooler inlet hose.
      G13621574Courtesy of SUBARU OF AMERICA, INC.

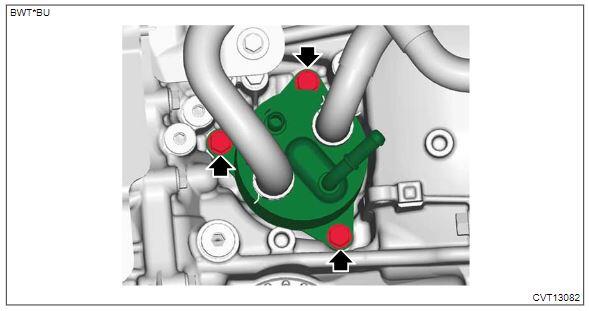

    3. Remove the CVTF cooler (with warmer feature), and move it aside so that it does not interfere with the operation.
      NOTE: Suspend from the vehicle body with rope, etc.
      G00674375Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the O-rings.
    G13603116Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the engine rear hanger.
    G11255514Courtesy of SUBARU OF AMERICA, INC.
  10. Disconnect the transmission harness connector from the engine wiring harness.
    G13224269Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the engine wiring harness stay.
    1. Remove the bolt (A) securing the engine ground and the harness case, and remove the clip (B).
    2. Remove the bolts securing the engine wiring harness stay, and remove the engine wiring harness stay.
    G13621579Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the TCM. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TRANSMISSION CONTROL MODULE (TCM)>REMOVAL .
  13. Remove the pitching stopper bracket. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TRANSMISSION MOUNTING SYSTEM>REMOVAL > PITCHING STOPPER
  14. Remove the starter. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>STARTER>REMOVAL .
  15. Separate the torque converter from drive plate.
    1. Remove the PCV hose No. 1. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO)>PCV HOSE>REMOVAL>PCV HOSE NO. 1 .
    2. Disconnect the connector (A), and remove the plug (B) from the service hole.
      G13875957Courtesy of SUBARU OF AMERICA, INC.

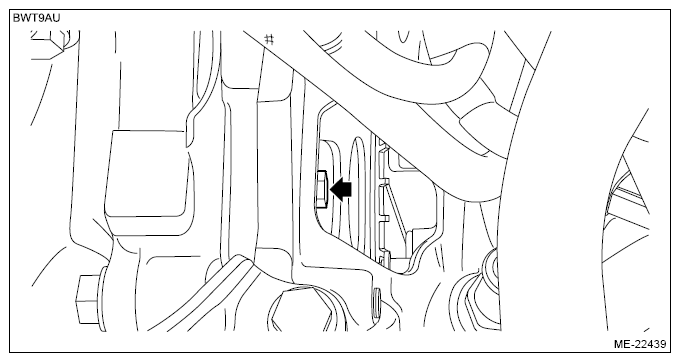

    3. Insert the wrench into the crank pulley bolt, and rotate the crank pulley to remove the bolts (4 places) securing the torque converter to the drive plate.
      G13603122Courtesy of SUBARU OF AMERICA, INC.
    4. Attach the ST to the converter case.

      Preparation tool:

      ST: STOPPER SET (498277200)

    G13618842Courtesy of SUBARU OF AMERICA, INC.
  16. Remove the bolts which hold the upper side of the transmission.
    G13600632Courtesy of SUBARU OF AMERICA, INC.
  17. Set the ST1 and ST2.

    Preparation tool:

    ST1: ENGINE SUPPORT BRACKET (41099AA012)

    ST2: ENGINE SUPPORT (41099AA020)

    G11255524Courtesy of SUBARU OF AMERICA, INC.
  18. Drain the CVTF. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>CVTF>REPLACEMENT .
  19. Drain differential gear oil. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>DIFFERENTIAL GEAR OIL>REPLACEMENT .
  20. Remove the CVTF CVT inlet hose and CVTF CVT outlet hose. (Model with CVTF cooler (air cool))
    CAUTION: Prepare the container for draining of CVTF.
    G13233141Courtesy of SUBARU OF AMERICA, INC.
  21. Remove the front drive shaft. Ref. to PROPELLER SHAFT/DRIVE SHAFT/AXLE>FRONT DRIVE SHAFT>REMOVAL .
  22. Remove the propeller shaft. Ref. to PROPELLER SHAFT/DRIVE SHAFT/AXLE>PROPELLER SHAFT>REMOVAL .
  23. Remove the hanger bracket.
    G11255529Courtesy of SUBARU OF AMERICA, INC.
  24. Disconnect the select cable.
    CAUTION: Do not apply excessive load while holding the part (a).
    G13591814Courtesy of SUBARU OF AMERICA, INC.
    G13225470Courtesy of SUBARU OF AMERICA, INC.
  25. Remove the bolts and nuts which hold the lower side of transmission.
    G13600620Courtesy of SUBARU OF AMERICA, INC.
  26. Set the transmission jack under the transmission.
    CAUTION:
    • Make sure that the support plates, etc. do not touch the oil pan.
    • Be sure to use belts, etc. to prevent the transmission from falling.
    G00674376Courtesy of SUBARU OF AMERICA, INC.
  27. Remove the transmission rear crossmember. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TRANSMISSION MOUNTING SYSTEM>REMOVAL > TRANSMISSION REAR CROSSMEMBER AND REAR CUSHION RUBBER .
  28. While lowering the transmission jack gradually, retract the ST (ENGINE SUPPORT), and then tilt the engine rearward.
  29. Remove the transmission body.
    NOTE: Adjust the position and angle of the transmission jack so that the engine and the transmission are aligned straight.
  30. Remove the rear cushion rubber. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TRANSMISSION MOUNTING SYSTEM>REMOVAL > TRANSMISSION REAR CROSSMEMBER AND REAR CUSHION RUBBER .

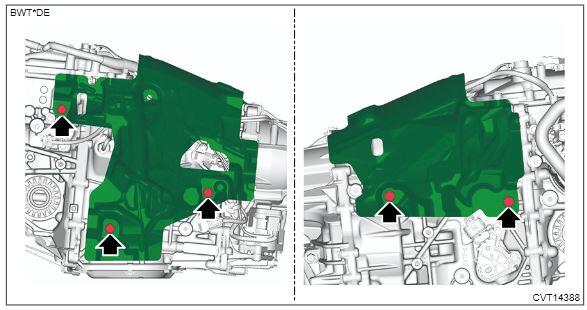

  31. Remove the transmission case cover (rear).
    G00674377Courtesy of SUBARU OF AMERICA, INC.
  32. Remove the CVTF cooler pipe No. 1.
    G13950320Courtesy of SUBARU OF AMERICA, INC.
  33. When overhauling the transmission body, refer to "Preparation for overhaul". Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>PREPARATION FOR OVERHAUL>PROCEDURE > BEFORE OVERHAUL .
