Transmission Case: Assembly

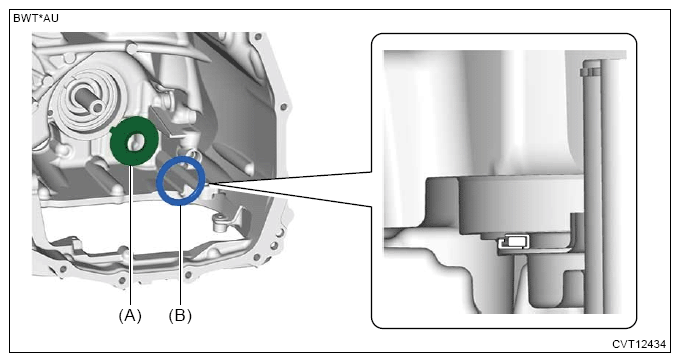

- Install the thrust bearing and oil guide.NOTE: Make sure to install the thrust bearing in the right direction.
(A) Oil guide (B) Thrust bearing - Press-fit the roller bearing using ST1, ST2, ST3 and a press.
Preparation tool:
ST1: BUSHING 1-2 INSTALLER (499277100)
ST2: INSTALLER (398177700)
ST3: PRESS SNAP RING (28499TC010)

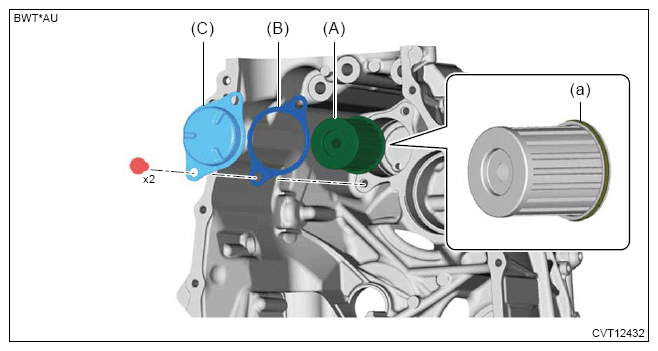

- Install the CVTF filter, a new gasket and the CVTF filter cover.NOTE:
- When reusing the CVTF filter, check the filter for clogging.
- Face the O-ring (a) to the transmission case side.
- Apply CVTF to the O-ring (a).
Tightening torque:
17 N.m (1.7 kgf-m, 12.5 ft-lb)

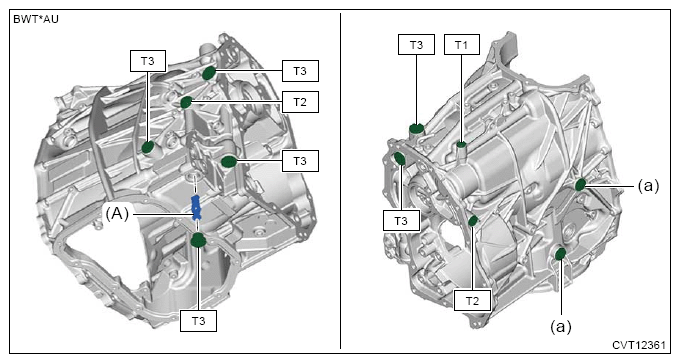

(A) CVTF filter (B) Gasket (C) CVTF filter cover - Install the oil control valve holder and plugs using new O-rings and new gaskets.NOTE:
- Apply CVTF to the O-rings.
- Replace the filler plug gasket (a) with a new part after adding CVTF.
Tightening torque:
T1: 13 N.m (1.3 kgf-m, 9.6 ft-lb)
T2: 22 N.m (2.2 kgf-m, 16.2 ft-lb)
T3: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

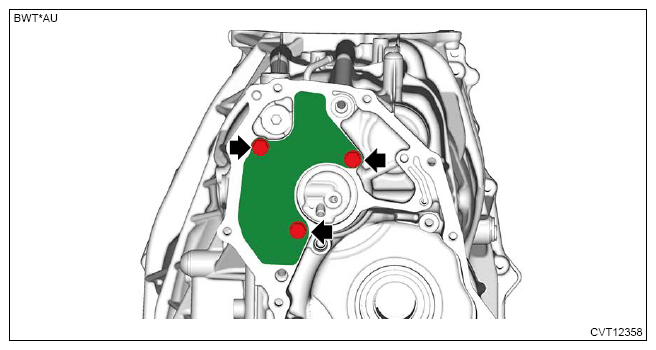

(A) Oil control valve holder - Install the oil stopper plate.
Tightening torque:
17 N.m (1.7 kgf-m, 12.5 ft-lb)
