Transmission Case: Disassembly

  1. Remove the oil stopper plate.
    G13936185Courtesy of SUBARU OF AMERICA, INC.

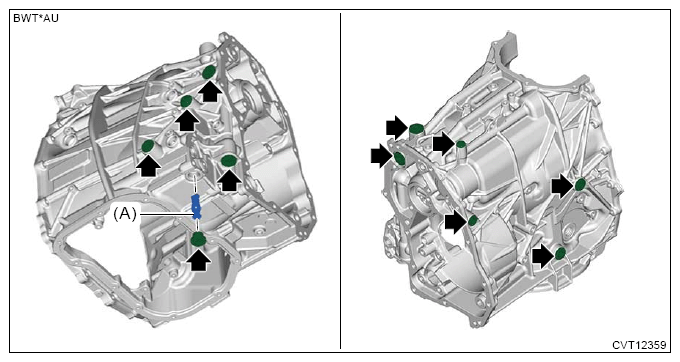

  2. Remove each plug and oil control valve holder.
    G16342272Courtesy of SUBARU OF AMERICA, INC.
    (A) Oil control valve holder

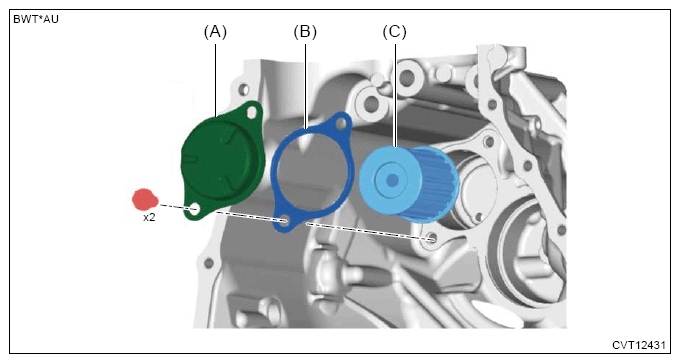

  3. Remove the CVTF filter cover, gasket and CVTF filter.
    G16342273Courtesy of SUBARU OF AMERICA, INC.
    (A) CVTF filter cover
    (B) Gasket
    (C) CVTF filter

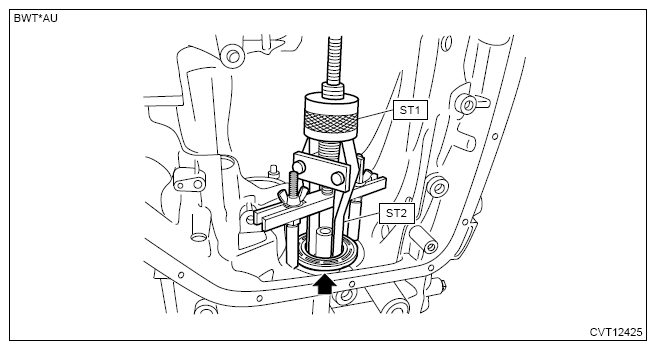

  4. Remove the roller bearing using the ST1 and ST2.
    1. Preparation tool:

      ST1: PULLER ASSY (398527700)

      ST2: CLAW (18760AA000)

      G13936188Courtesy of SUBARU OF AMERICA, INC.

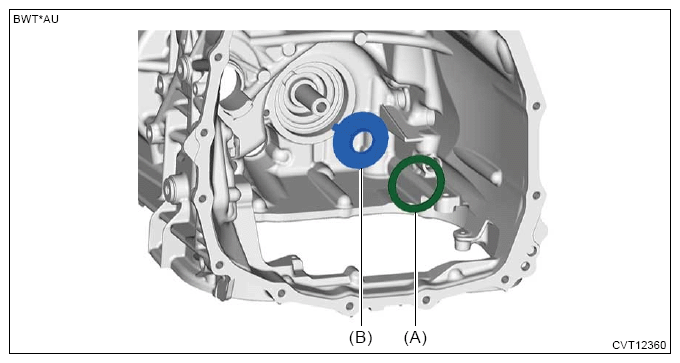

    2. Remove the thrust bearing and oil guide.
G16342275Courtesy of SUBARU OF AMERICA, INC.
(A) Thrust bearing
(B) Oil guide
