Transmission Control Device: Installation

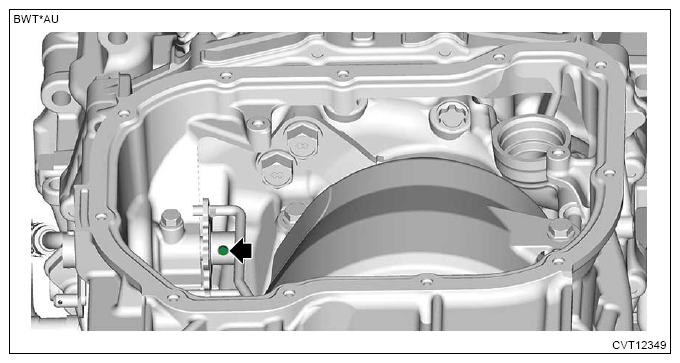

Install a new oil seal using ST.
NOTE: Apply CVTF to the press-fitting area.

Preparation tool:

ST: INSTALLER (18657AA000)

Courtesy of SUBARU OF AMERICA, INC.

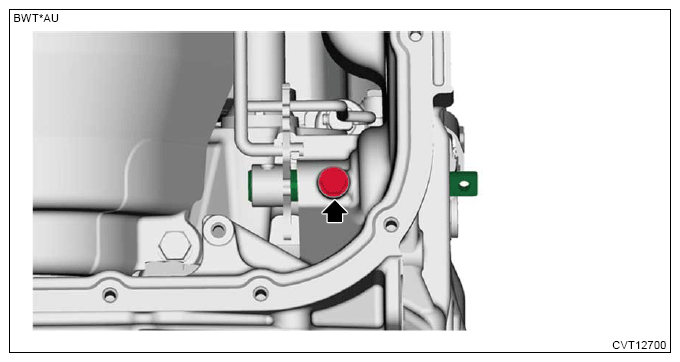

Install the manual valve.

Courtesy of SUBARU OF AMERICA, INC.

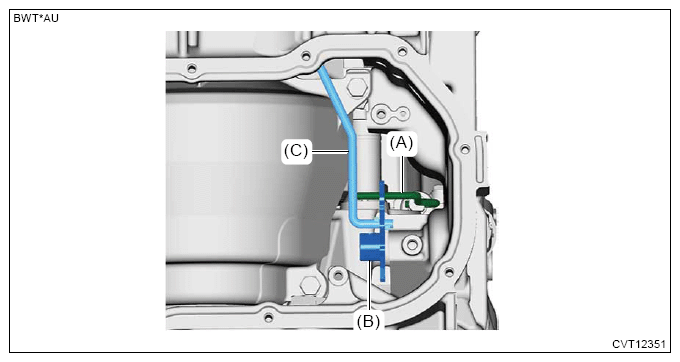

Install the parking rod to the manual plate.
Set the manual plate (B) and parking rod (C) as a set, and install the rod (A) of the manual valve.

Courtesy of SUBARU OF AMERICA, INC.

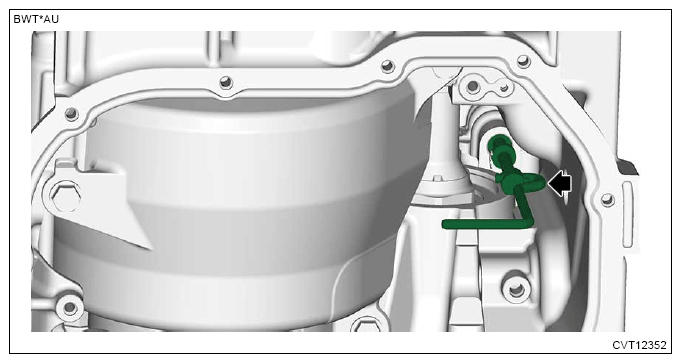

Install the shifter arm shaft.
CAUTION: Be careful not to damage the oil seal.

NOTE: Apply CVTF to the oil seal lip.

Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install a new spring pin.

Courtesy of SUBARU OF AMERICA, INC.

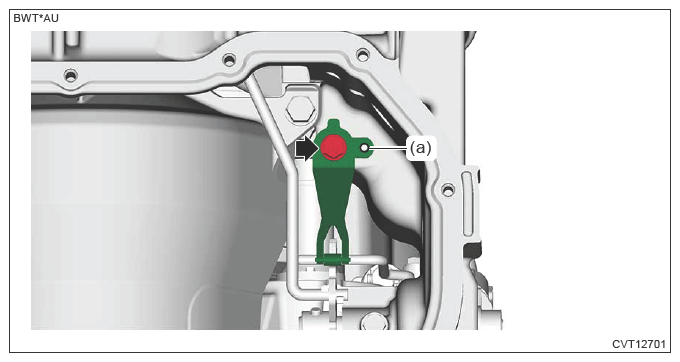

Install the detent spring.
NOTE: Make sure that the pin (a) of the detent spring is inserted into the positioning hole.

Tightening torque:

7 N.m (0.7 kgf-m, 5.2 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>INHIBITOR SWITCH>INSTALLATION .
Install the oil strainer and oil pan. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>OIL PAN>INSTALLATION .

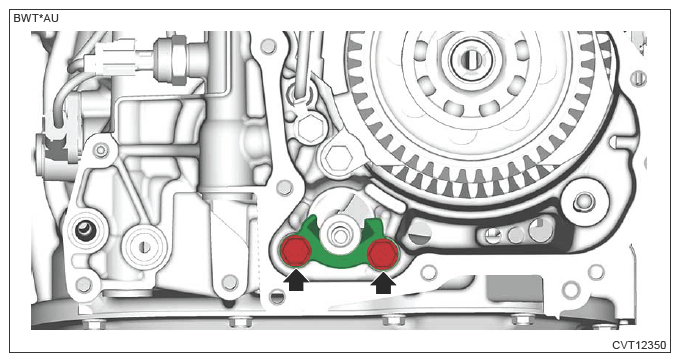

Install the parking support.
Tightening torque:

25 N.m (2.5 kgf-m, 18.4 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>PARKING PAWL>INSTALLATION .
