Transmission Control Device: Removal

  1. Remove the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>PARKING PAWL>REMOVAL .
  2. Remove the parking support.
    G13936145Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>INHIBITOR SWITCH>REMOVAL .
  4. Remove the oil pan and oil strainer. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>OIL PAN>REMOVAL .

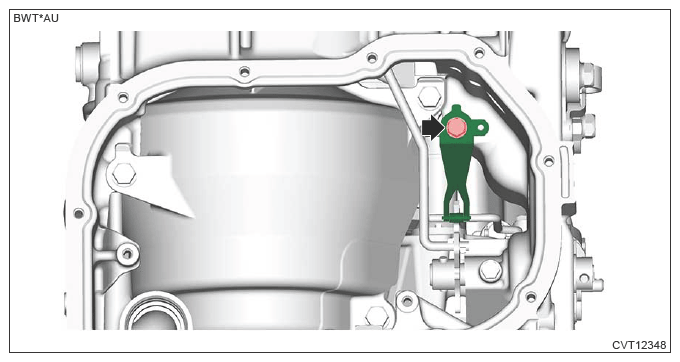

  5. Remove the detent spring.
    G13936146Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the spring pin.
    NOTE: Be careful not to drop the spring pin in the transmission.
    G13936147Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the shifter arm shaft.
    G13936148Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the manual valve rod (A) and remove the manual plate (B) and parking rod (C) as a unit.
    G13936149Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the parking rod from the manual plate.
  10. Remove the manual valve.
    G13936150Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the oil seal using a flat tip screwdriver wrapped with protection tape.
G13622215Courtesy of SUBARU OF AMERICA, INC.
