Transmission Control Module (TCM): Installation
CAUTION:
- When replacing the TCM, be sure to perform [Start count reading ECU to SSM] before operation and perform [Start count writing SSM to ECU] after operation. Ref. to AUTO START STOP (DIAGNOSTICS)>WORK SUPPORT>NOTE .
- When [Start count reading ECU to SSM] cannot be performed due to TCM malfunction, be sure to replace the starter and fuel pump relay at the same time.
Starter:
Ref. to STARTING/CHARGING SYSTEMS (H4DO)>STARTER .
Fuel pump relay:
Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL PUMP RELAY .
NOTE:
When replacing the TCM, be sure to perform [Save settings] for the customizing information before operation and perform [Read settings] after operation.
Each item can be selected from [Transmission].
List:
Ref. to AUTO START STOP (DIAGNOSTICS)>CUSTOMIZE>LIST
Operation:
Ref. to COMMON (DIAGNOSTICS)>CUSTOMIZE>OPERATION
- Install the TCM.
Tightening torque:
7 N.m (0.7 kgf-m, 5.2 ft-lb)
- Connect the connector.NOTE: Move the lock lever and confirm that a clicking sound is heard.

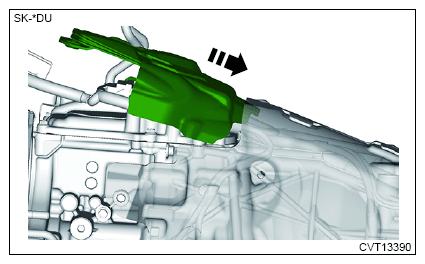

- Install the transmission case cover (front).NOTE:
- Insert the transmission case cover (front) between transmission case cover (rear) and transmission body.
- When inserting, be careful that the insulator inside transmission case cover is not turned over.
Tightening torque:
7 N.m (0.7 kgf-m, 5.2 ft-lb)
- Install the pitching stopper. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>TRANSMISSION MOUNTING SYSTEM>INSTALLATION > PITCHING STOPPER .
- Connect the ground cord.
Tightening torque:
32.3 N.m (3.3 kgf-m, 23.8 ft-lb)
- Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Perform the [Clear AT learning value] and [AT learning mode] using Subaru Select Monitor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR580)>AT LEARNING>PROCEDURE .
