Select Cable: Installation

CAUTION:
  • Check that the protector (b) is set between the clamps (a).
  • If the protector (b) is offset, set it between the clamps (a).
G13935596Courtesy of SUBARU OF AMERICA, INC.
  1. Install the select cable to cable plate.
    CAUTION: Be careful not to twist the boot.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

    G13225512Courtesy of SUBARU OF AMERICA, INC.

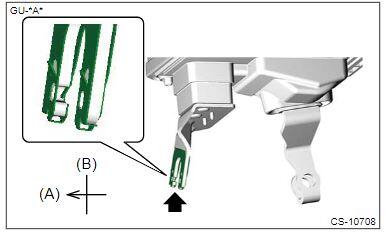

  2. Set a new clamp on the select lever and secure it by bending the claw.
    G00675463Courtesy of SUBARU OF AMERICA, INC.
    (A) Front side
    (B) Upside
  3. Install the select cable to the select lever. (If the connector pin is not removed)
    CAUTION:
    • Install the cable so that it does not twist.
    • Check that the select lever is in "N range".
    • If the connector pin is removed, always replace with a new connector pin.
    • Do not apply excessive load while holding the part (a).
    G14602404Courtesy of SUBARU OF AMERICA, INC.
    1. Insert the select cable to the connector pin.
    2. Secure the select cable to the clamp.
    G14602410Courtesy of SUBARU OF AMERICA, INC.
  4. Install the select cable to the select lever. (If the connector pin is removed)
    CAUTION:
    • Install the cable so that it does not twist.
    • Check that the select lever is in "N range".
    • Do not apply excessive load while holding the part (a).
    G14602404Courtesy of SUBARU OF AMERICA, INC.
    1. Secure the select cable to the clamp.

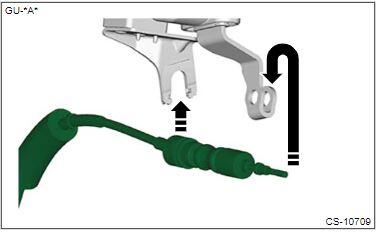

    2. Align the cable thread with the select lever arm.
      G00675464Courtesy of SUBARU OF AMERICA, INC.

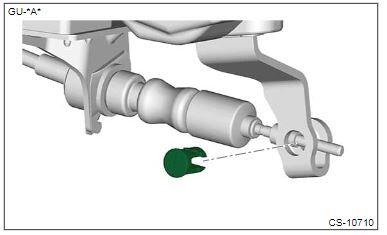

    3. Install a new connector pin.
      G00675465Courtesy of SUBARU OF AMERICA, INC.
  5. Temporarily Install the adjusting nut (rear) to the select cable.
  6. Apply grease to the shifter arm.

    Preparation items:

    Grease: NIPPON GREASE NIGTIGHT LTS No. 2 or equivalent

    G16387247Courtesy of SUBARU OF AMERICA, INC.
  7. Connect the select cable to the transmission main body.
    CAUTION: Do not apply excessive load while holding the part (a).
    G13591814Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Set the washer before installing the snap pin.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

    G13225470Courtesy of SUBARU OF AMERICA, INC.
  8. Adjust the select cable free play. Ref. to CONTROL SYSTEMS>SELECT CABLE>ADJUSTMENT .
  9. Install the center exhaust cover. Ref. to EXHAUST (H4DO)>REAR EXHAUST PIPE>INSTALLATION .
  10. Release the shift lock using a screwdriver, etc. and shift the select lever to the "P range".
  11. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
