2.0 L Model

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Drain engine coolant. Ref. to COOLING (H4DO)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  3. Remove the air intake boot.
    1. Remove the clip.
    2. Loosen the clamp.
      G16760376Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
      CAUTION: Be careful not to pull out the PCV hose.
      G16760377Courtesy of SUBARU OF AMERICA, INC.

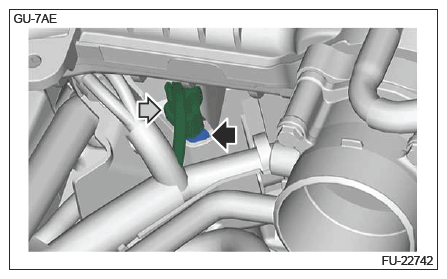

  4. Disconnect the connector and remove the engine coolant temperature sensor.
    G16760555Courtesy of SUBARU OF AMERICA, INC.
