Fuel Injector LH

  1. When replacing the fuel injector assembly with a new one (2.0 L model)
    CAUTION: When replacing the fuel injector assembly, select the assembly with the same flow rate stratification number.
    NOTE: The flow rate stratification numbers of all 4 cylinders are identical.
    G16523276Courtesy of SUBARU OF AMERICA, INC.
    (A)  Flow rate stratification number
    (B)  QR code
  2. When reusing the fuel injector
    1. Prepare the fuel injector assembly using the following new parts. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL INJECTOR>REPLACEMENT .
      • Fuel injector seal
      • Slider washer
      • Back-up ring
      • O-ring seal
      • Stopper ring
  3. Install the fuel injector holder.
    CAUTION: Always use a new fuel injector holder.
    • 2.0 L model
    G16760477Courtesy of SUBARU OF AMERICA, INC.
    • 2.5 L model
    G16760478Courtesy of SUBARU OF AMERICA, INC.
  4. Align the protrusion of the fuel injector holder to the anti-rotation slot of the fuel injector pipe LH, and install the fuel injector straight to the fuel injector pipe LH.
    CAUTION:
    • Degrease inside of the fuel injector insertion hole of the fuel injector pipe  .
    • Check the inside of the fuel injector insertion hole of the fuel injector pipe for foreign materials or damage  .
    • Be careful not to allow gasoline to contact with the fuel injector seal and the inside of the mounting hole  .
    • Apply liquid paraffin to the O-ring seal and install it  .
    • Be careful not to twist the O-ring seal  .
    • To prevent damage to the O-ring seal, insert the part straight along the fuel injector insertion axis without tilting it and avoid removing and inserting the part again  .
    • To prevent the tip of the fuel injector from bending, do not apply force to the fuel injector tip  .
    • Check that the tip of the fuel injector has no bend or damage  .
    • Make sure there is no gap between the fuel injector pipe and the fuel injector holder  .
    • Make sure there is no gap between the fuel injector and the fuel injector holder  .
    • 2.0 L model
    G16347081Courtesy of SUBARU OF AMERICA, INC.
    (A)  Protrusion portion
    (B)  Anti-rotation slot
    (C)  No gap allowed  .
    • 2.5 L model
    G16760480Courtesy of SUBARU OF AMERICA, INC.
    (A)  Protrusion portion
    (B)  Anti-rotation slot
    (C)  No gap allowed  .
  5. Install the fuel injector. (2.0 L model)

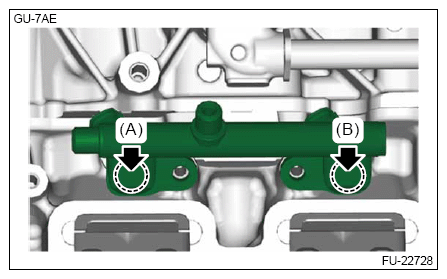

    1. Insert the fuel injector pipe LH and fuel injector as a single unit into the cylinder head, and align their positions. Then, evenly press the sections (A) and (B).
      CAUTION:
      • When installing, apply liquid paraffin to the fuel injector seal  .
      • In order to prevent damaging the O-ring seal, do not install the fuel injector pipe and fuel injector by tilting them toward the cylinder head  .
      G16760488Courtesy of SUBARU OF AMERICA, INC.

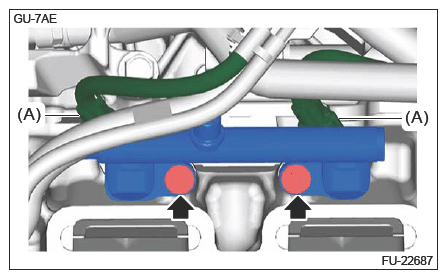

    2. Tighten the bolts which hold the fuel injector pipe LH, and connect the connector (A).

      Tightening torque  :

      19 N.m (1.9 kgf-m, 14.0 ft-lb)

      G16760469Courtesy of SUBARU OF AMERICA, INC.
  6. Install the fuel injector. (2.5 L model)
    1. Connect the coupling harness to the fuel injector #4.

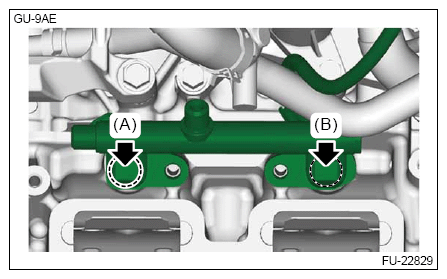

    2. Insert the fuel injector pipe LH and fuel injector as a single unit into the cylinder head, and align their positions. Then, evenly press the sections (A) and (B).
      CAUTION:
      • When installing, apply liquid paraffin to the fuel injector seal  .
      • In order to prevent damaging the O-ring seal, do not install the fuel injector pipe and fuel injector by tilting them toward the cylinder head  .
      G16760490Courtesy of SUBARU OF AMERICA, INC.
    3. Tighten the bolts which hold the fuel injector pipe LH.

      Tightening torque  :

      19 N.m (1.9 kgf-m, 14.0 ft-lb)

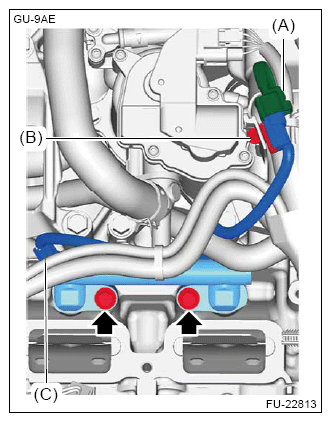

    4. Connect the connector (C) to the fuel injector #2.
    5. Install the clip (B), and connect the connector (A) to the coupling harness.

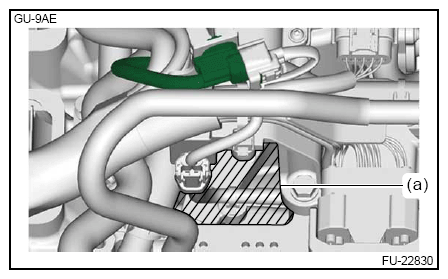

      CAUTION: Do not pass the coupling harness through the shaded area (a) shown in the figure.
      G16760491Courtesy of SUBARU OF AMERICA, INC.
      G16760474Courtesy of SUBARU OF AMERICA, INC.
    6. Install the A/C compressor. Ref. to AIR CONDITIONER>COMPRESSOR>INSTALLATION .
  7. Install the high-pressure fuel delivery pipe. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>HIGH PRESSURE FUEL DELIVERY PIPE>INSTALLATION>HIGH-PRESSURE FUEL DELIVERY PIPE .
  8. Install the high-pressure fuel delivery pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>HIGH PRESSURE FUEL DELIVERY PIPE>INSTALLATION>HIGH-PRESSURE FUEL DELIVERY PIPE ASSEMBLY .
  9. Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
  10. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  11. Check refrigerant leaks. (2.5 L model) Ref. to AIR CONDITIONER>REFRIGERANT LEAK CHECK>INSPECTION .
