RH Side

Install the knock sensor and connect the connector.
NOTE:

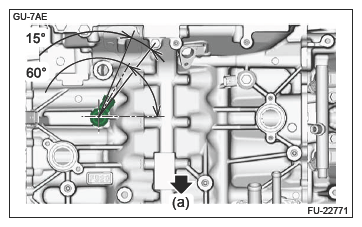

- Knock sensor must be positioned so that the connector center comes within the range shown in the figure .
- Make sure that the knock sensor and its connector do not touch the adjacent parts .
Courtesy of SUBARU OF AMERICA, INC.

(a) Front of engine

Tightening torque :

25 N.m (2.5 kgf-m, 18.4 ft-lb)
Install the PCV hose No. 1. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DO)>PCV HOSE>INSTALLATION>PCV HOSE NO. 1 .
Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
