2.5 L Model
- Install the crankshaft position sensor and connect the connector.
Tightening torque :
6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

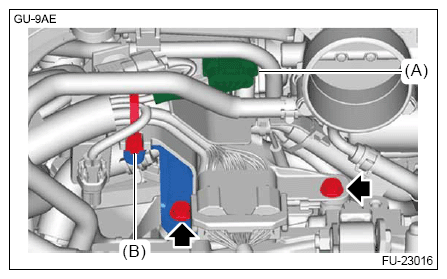

- Install the engine wiring harness bracket.
Tightening torque :
19 N.m (1.9 kgf-m, 14.0 ft-lb)
- Install the engine ground and the harness case.
Tightening torque :
19 N.m (1.9 kgf-m, 14.0 ft-lb)
- Install the clip (B) to the engine wiring harness bracket.
- Connect the connector (A).
- Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
