2.0 L Model

NOTE: Components: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>GENERAL DESCRIPTION>COMPONENT>CRANKSHAFT POSITION SENSOR, CAMSHAFT POSITION SENSOR, KNOCK SENSOR AND OIL CONTROL SOLENOID .
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake boot.
    1. Remove the clip.
    2. Loosen the clamp.
      G16760376Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
      CAUTION: Be careful not to pull out the PCV hose.
      G16760377Courtesy of SUBARU OF AMERICA, INC.

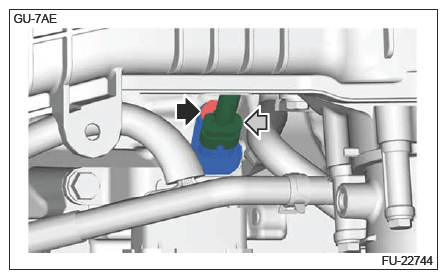

  3. Disconnect the connector and remove the crankshaft position sensor.
    G16760567Courtesy of SUBARU OF AMERICA, INC.
