2.5 L Model

NOTE: Components  : Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>GENERAL DESCRIPTION>COMPONENT>CRANKSHAFT POSITION SENSOR, CAMSHAFT POSITION SENSOR, KNOCK SENSOR AND OIL CONTROL SOLENOID .
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake boot.
    1. Remove the clip.
    2. Loosen the clamp.
      G16760401Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
      CAUTION: Be careful not to pull out the PCV hose.
      G16760402Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the connector (A).
  4. Remove the bolts securing the engine ground and harness case.
  5. Remove the clip (B) from the engine wiring harness bracket.
  6. Remove the engine wiring harness bracket.
    G16760570Courtesy of SUBARU OF AMERICA, INC.
  7. Disconnect the connector and remove the crankshaft position sensor.
    CAUTION: Do not apply excessive force to the harness. Otherwise the harness may be damaged.

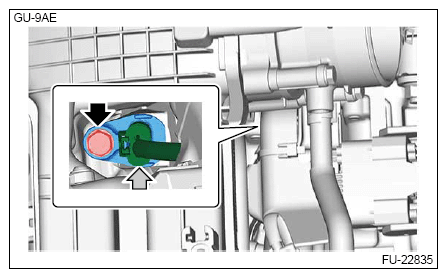

    G16760571Courtesy of SUBARU OF AMERICA, INC.
