Fuel Injector RH

WARNING: Place "NO OPEN FLAMES" signs near the working area.
CAUTION:
  • Be careful not to spill fuel  .
  • Catch the fuel from the pipes using a container or cloth  .
NOTE: Components: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>GENERAL DESCRIPTION>COMPONENT>FUEL INJECTOR .
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake boot.
    1. Remove the clip.
    2. Loosen the clamp.
      G16760376Courtesy of SUBARU OF AMERICA, INC.

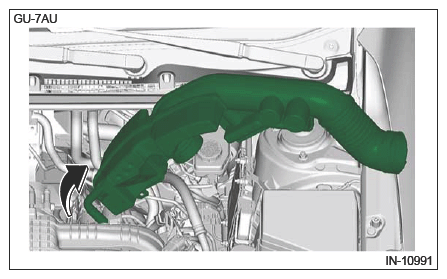

    3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
      CAUTION: Be careful not to pull out the PCV hose.
    G16760463Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the high-pressure fuel delivery pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>HIGH PRESSURE FUEL DELIVERY PIPE>REMOVAL>HIGH-PRESSURE FUEL DELIVERY PIPE ASSEMBLY .
  4. Remove the connector (A) and connector (B).
  5. Remove the fuel injector pipe RH together with the fuel injector.
    G16760464Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the fuel injector.
    CAUTION:
    • If the tip of the fuel injector assembly is hit or the assembly is dropped, replace the fuel injector assembly with a new part  .
    • Pull out the assembly straight so that the seal surface of the fuel injector pipe RH is not damaged  .
    • Identify the removed fuel injector assembly with a tag etc. marked with the cylinder number  .

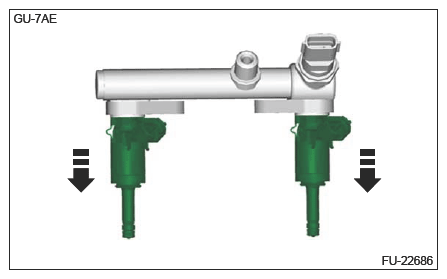

    • 2.0 L model
    G16760465Courtesy of SUBARU OF AMERICA, INC.

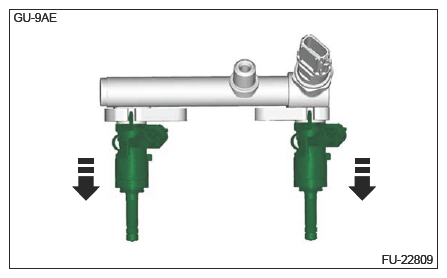

    • 2.5 L model
    G16760466Courtesy of SUBARU OF AMERICA, INC.
