2.5 L Model
- Install the fuel pipe insulator.CAUTION:
- If substantial amount of fuel or parts cleaner come into contact with the fuel pipe insulator, replace it with a new fuel pipe insulator .
- If only small amount of fuel comes into contact with the fuel pipe insulator, wait for the fuel to evaporate before installing it .

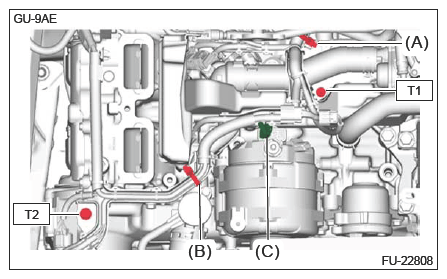

- Install the bolt securing the engine wiring harness.
Tightening torque :
T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)
T2: 19 N.m (1.9 kgf-m, 14.0 ft-lb)
- Install the clip (A) and clip (B) securing the engine wiring harness.
- Connect the connector (C) to the outlet engine coolant temperature sensor.
- Install the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>INTAKE MANIFOLD ASSEMBLY>INSTALLATION>2.5 L MODEL .
- Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
- Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
