Fuel Pump Side

  1. Install the fuel level sensor to the fuel pump assembly.

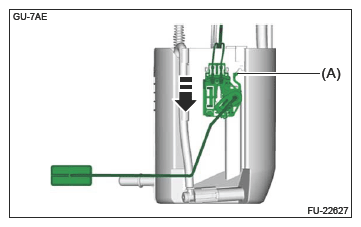

    1. Install the fuel level sensor and confirm that the claw (A) is locked securely.
      G16760726Courtesy of SUBARU OF AMERICA, INC.
    2. Install the fuel level sensor harness and connector cable to the clip.
      CAUTION: Be sure to install the fuel level sensor harness to the clip first, then install the connector cable. Otherwise, malfunction may occur.

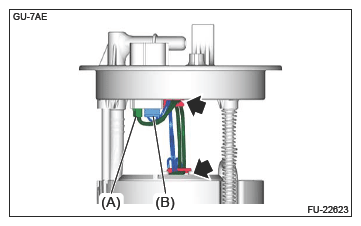

    3. Connect the connector (B).
    4. Connect the connector (A).
      G16760722Courtesy of SUBARU OF AMERICA, INC.
  2. Install the fuel pump assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL PUMP ASSEMBLY>INSTALLATION .
