Intake Manifold Assembly

• 2.0 L model

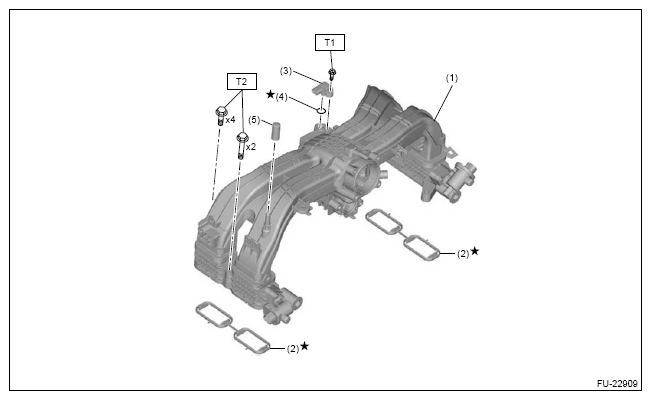

Fig 1: Intake Manifold Assembly Components Location (2.0 L Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 25 (2.5, 18.4)

• [2.5 L VIN:] JF1############## [model and] JF2############## [model]

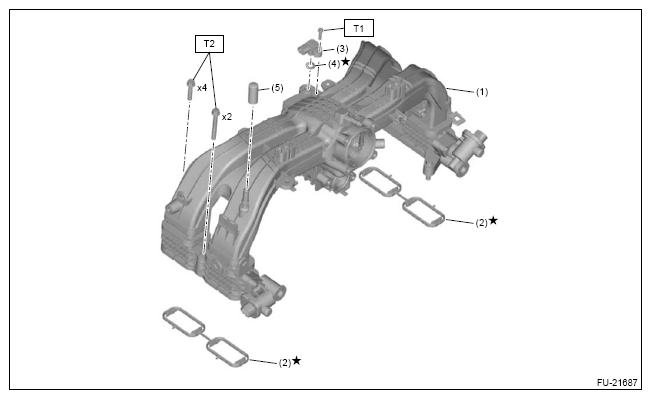

Fig 2: Intake Manifold Assembly Components Location (2.5 L VIN - JF1 And JF2 Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 25 (2.5, 18.4)

• 2.5 [L VIN:] 4S4############## [model]

Fig 3: Intake Manifold Assembly Components Location (2.5 L VIN - 4S4 Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 3.4 (0.3, 2.5)

T2: 25 (2.5, 18.4)
