Electrical Specification

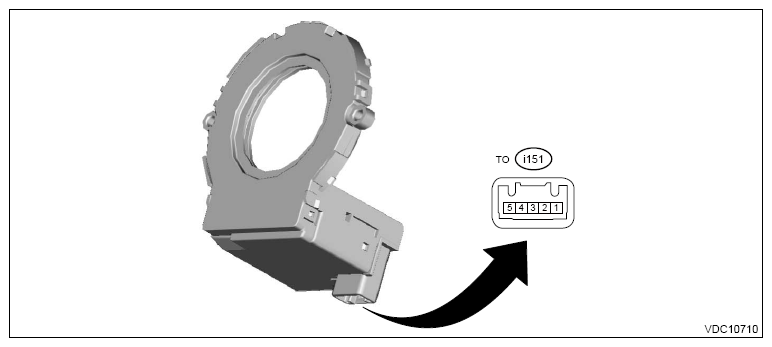

G14614782Courtesy of SUBARU OF AMERICA, INC.
Connector No. Terminal No. Contents Measuring condition Standard
i151 1 Ground - -
i151 2 Chassis CAN_L signal - -
i151 3 Chassis CAN_H signal - -
i151 4 Ignition power supply Ignition switch: ON 9 - 16 V
i151 5 - - -
