Rear Gate Lock/Unlock And Open/Close Operations

Operate the rear gate emergency release lever to check that the rear gate can be locked and unlocked properly.

Remove the cover inside the rear gate.

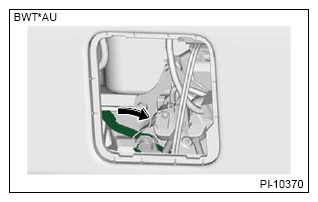

Fig 1: G00658244
Courtesy of SUBARU OF AMERICA, INC.

Operate the lever using a tool such as a screwdriver to check that the unlock operation can be performed normally.

Model without power rear gate

Courtesy of SUBARU OF AMERICA, INC.

Model with power rear gate

Courtesy of SUBARU OF AMERICA, INC.
