Bushing Rear Front Arm
- Put alignment marks (d) on the arm assembly front, based on an extended line (c) connecting the center of ball joint COMPL (a) and the center of busing rear front arm (b).

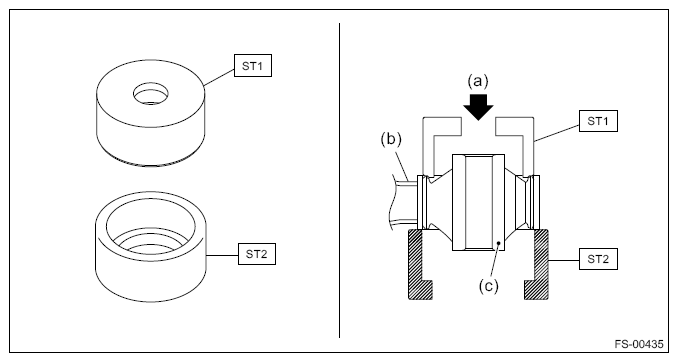

- Remove the bushing rear front arm using ST1 and ST2.
Preparation tool:
ST1: REMOVER (20299AG000)
ST2: BASE (20299AG010)
| (a) | Press |
| (b) | Arm ASSY front |
| (c) | Bushing rear front arm |
