Front Strut: Removal

  1. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  2. Remove the nut and disconnect the stabilizer link front (upper part).
    G13620865Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the bolts and then remove the brake hose bracket.
    G13199352Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the sensor sub assembly front.
    G13620867Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the strut assembly.
    1. Place an alignment mark (a) on the adjusting bolt and the strut assembly.
    2. Remove the adjusting bolts and flange bolts for the strut assembly.
      CAUTION: Turn and remove the nut while holding the bolt side.
      G13620831Courtesy of SUBARU OF AMERICA, INC.

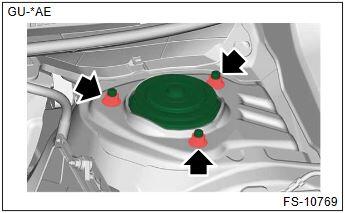

    3. Remove the three nuts securing the mount strut front to the body.
    G00658288Courtesy of SUBARU OF AMERICA, INC.
