Oil Pipe

Oil pipe (vacuum pump)

NOTE: The oil pipe (vacuum pump) is installed on the MT models only.

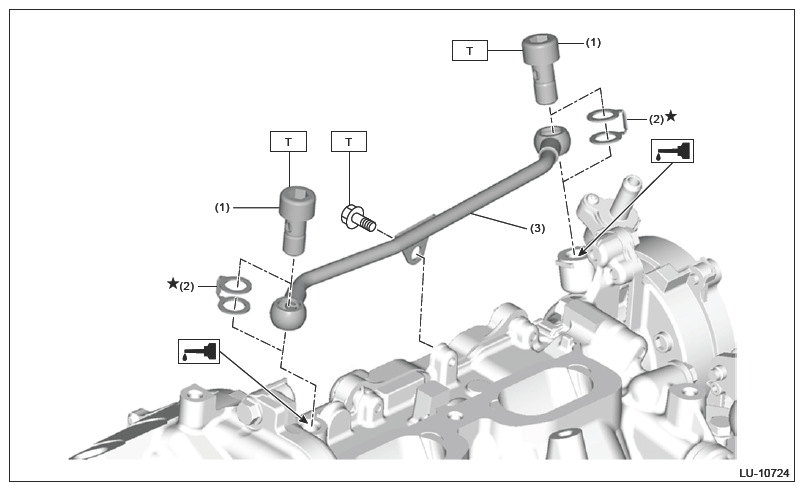

Fig 1: Oil Pipe (Vacuum Pump) Components Location

G16536030

Courtesy of SUBA

(1)	Union bolt
(2)	Gasket
(3)	Oil pipe

Tightening torque: N.m (kgf-m, ft-lb)

T: Ref. to LUBRICATION (H4DOTC)>OIL PIPE>INSTALLATION>OIL PIPE (VACUUM PUMP) .

Oil pipe (scavenge pump)

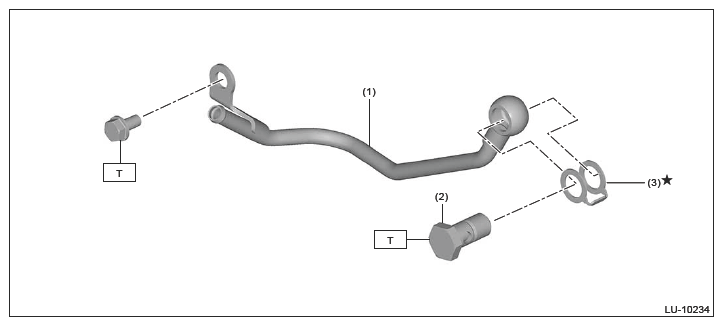

Fig 2: Oil Pipe (Scavenge Pump) Components Location

G16385146

Courtesy of SUBA

(1)	Oil pipe
(2)	Union bolt
(3)	Gasket

Tightening torque: N.m (kgf-m, ft-lb)

T: Ref. to LUBRICATION (H4DOTC)>OIL PIPE>INSTALLATION>OIL PIPE (SCAVENGE PUMP) .
