Engine Wiring Harness

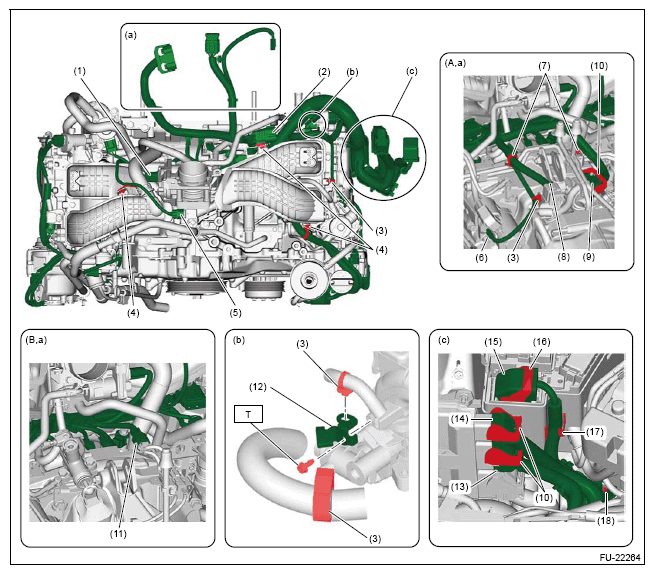

- Structural diagram 1
| (A) | CVT model |
| (B) | MT model |
| (1) | Throttle position sensor connector |
| (2) | 11P connector |
| (3) | Secure the clip to the stay. |
| (4) | Secure a clip to the intake manifold. |
| (5) | Manifold pressure and intake air temperature sensor connector |
| (6) | Starter magnet switch |
| (7) | Secure to the CVT pipe stay. |
| (8) | CVT transmission harness connector (20P) |
| (9) | CVT transmission harness connector (30P) |
| (10) | Lock the lever firmly. |
| (11) | MT transmission harness connector |
| (12) | Harness stay |
| (13) | ECM connector (64P) |
| (14) | ECM connector (32P) |
| (15) | M/B connector (76P) |
| (16) | Push in the lock lever securely. |
| (17) | Secure the harness to the clip. |
| (18) | Secure to the harness stay. |
Tightening torque: N.m (kgf-m, ft-lb)
T: 6.4 (0.7, 4.7)

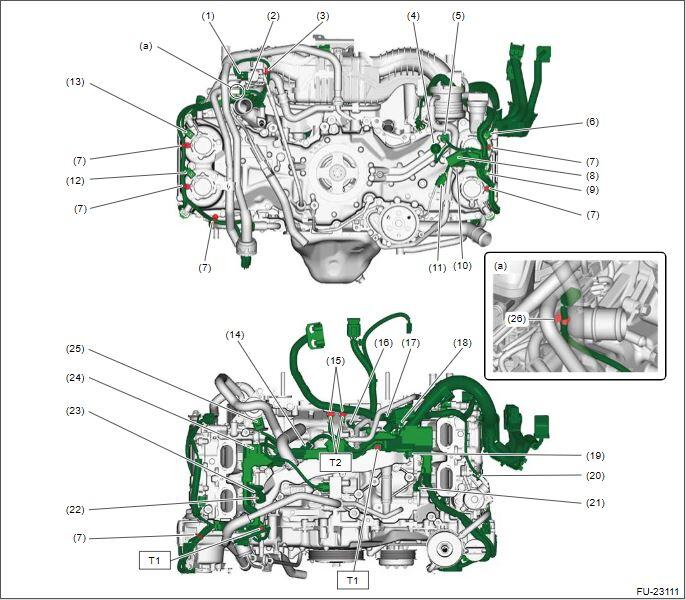

- Structural diagram 2
| (1) | Purge control solenoid valve connector |
| (2) | Blow-by diagnosis harness connector |
| (3) | Secure the clip to the purge control solenoid valve bracket. |
| (4) | Oil pressure switch (Refer to "Oil Pressure Switch" of "LUBRICATION" for installation. Ref. to LUBRICATION (H4DOTC)>OIL PRESSURE SWITCH>INSTALLATION .) |
| (5) | Engine oil temperature sensor connector |
| (6) | Intake oil control solenoid connector LH |
| (7) | Secure the clip to the screw hole. |
| (8) | Front oxygen (A/F) sensor connector |
| (9) | Exhaust oil control solenoid connector LH |
| (10) | Secure the clip to the oil cooler pipe. |
| (11) | Oil level switch connector |
| (12) | Exhaust oil control solenoid connector RH |
| (13) | Intake oil control solenoid connector RH |
| (14) | Knock sensor connector RH |
| (15) | Engine ground |
| (16) | Crankshaft position sensor connector |
| (17) | Knock sensor connector LH |
| (18) | Engine coolant temperature sensor connector |
| (19) | Fuel injector connector (#4) |
| (20) | High-pressure fuel pump connector |
| (21) | Fuel injector connector (#2) |
| (22) | Fuel pressure sensor connector |
| (23) | Fuel injector connector (#1) |
| (24) | Fuel injector connector (#3) |
| (25) | EGR control valve connector |
| (26) | Secure the blow-by diagnosis connector to the hook. |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 19 (1.9, 14.0)

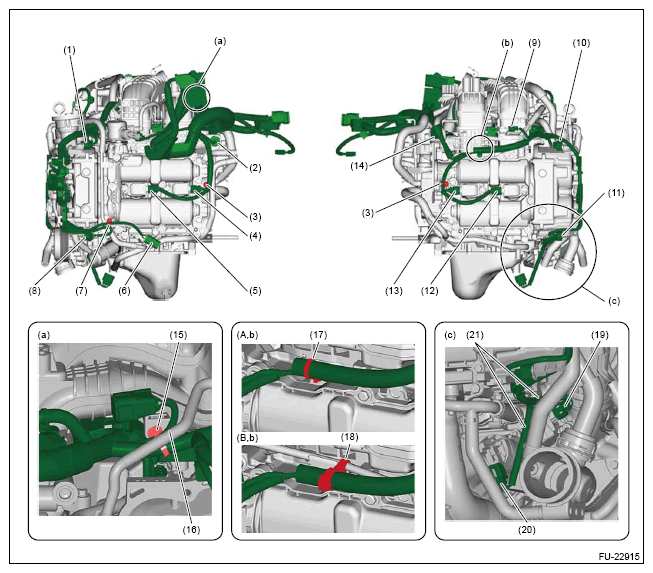

- Structural diagram 3
| (A) | CVT model |
| (B) | MT model |
| (1) | Intake camshaft position sensor connector LH |
| (2) | Tumble generator valve actuator connector LH |
| (3) | Secure the clip to the screw hole. |
| (4) | Ignition coil connector (#4) |
| (5) | Ignition coil connector (#2) |
| (6) | Rear oxygen sensor connector |
| (7) | Secure the clip to the stay. |
| (8) | Exhaust camshaft position sensor connector LH |
| (9) | CPC pressure sensor connector |
| (10) | Intake camshaft position sensor connector RH |
| (11) | Exhaust camshaft position sensor connector RH |
| (12) | Ignition coil connector (#1) |
| (13) | Ignition coil connector (#3) |
| (14) | Tumble generator valve actuator connector RH |
| (15) | Secure a clip to the intake manifold. |
| (16) | Route the harness between the preheater hose and the intake manifold. |
| (17) | Secure the clip to the cam carrier. |
| (18) | Secure the clip to the oil pipe. |
| (19) | Electronic air by-pass valve connector |
| (20) | Electronic wastegate valve connector |
| (21) | Route the harness on the engine rear side of vacuum hose. |
