Fuel Filler Pipe

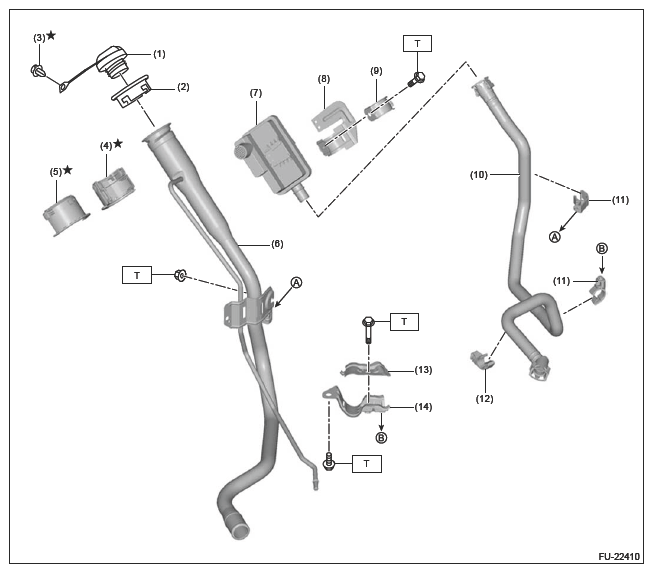

Fig 1: Fuel Filler Pipe Components Location

G16534787

Courtesy of SUBARU OF AMERICA, INC.

(1)

Fuel filler cap

(2)

Fuel filler pipe protector

(3)

Clip

(4)

Neck holder A

(5)

Neck holder B

(6)

Fuel filler pipe

(7)

Drain filter ASSY⁽¹⁾

(8)

Drain filter bracket A⁽¹⁾

(9)

Drain filter bracket B

(10)

Drain tube

(11)

Tube clamp

(12)

Tube clamp

(13)

Upper bracket

(14)

Lower bracket

⁽¹⁾	If the drain filter bracket A is removed from the drain filter, be sure to replace the drain filter and drain filter bracket A with new parts.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
